| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
Export mode
24.265-29.655 MHz
10 m mode
28.245-29.655 MHz
|
| Channels / tuning steps: | 480 (12*40) |
| Mode: | AM / FM / SSB / CW |
| Frequency control: | PLL (RCI-145106) |
| Frequency stability: | 0.001% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | Coarse: ±? KHz
Fine: ±? KHz |

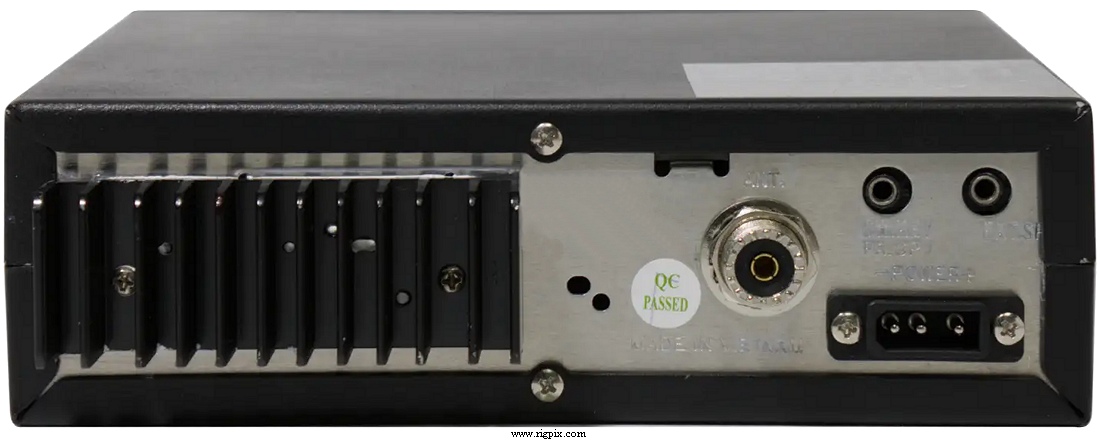

| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 200*60*273 mm (7.88*2.38*10.75") |
| Weight: | 2.27 Kg (5 lb) |
| Other features: |
NB/ANL. Echo. Roger beep. +10 KHz button. SWR-meter.
Talkback. Auto dimmer.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB/CW)
IF: 10.695 MHz
Double conversion superheterodyne (AM/FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: LT455HT
|
| Sensitivity: |
AM/CW: 1 uV (10 dB (S+N)/N)
FM: 0.5 uV (20 dB (S+N)/N)
SSB: 0.25 uV (10 dB (S+N)/N)
|
| Squelch sensitivity: | Less than 0.5 uV (Threshold) |
| Selectivity: | |
| Image rejection: | >65 dB |
| AF output power / speaker: | 2.5 W at 10% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM/FM/CW: Variable up to 10 W
SSB: Variable up to 25 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Vietnam, 2024-202x |
| Main PCB: |
EPT690011D by Ranger
Single sided with through-hole components
|
| Sub PCBs: |
EPTEB1910Z - Echo board
and others...
|
| Additional info: |
Sale price, september 2025 in the US: $299.95
|
| Related documents: |
User manual (697 KB)
PLL: RCI-145106
|
| Known markets and approvals: |
No known approvals for CB use
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
