| GENERAL |

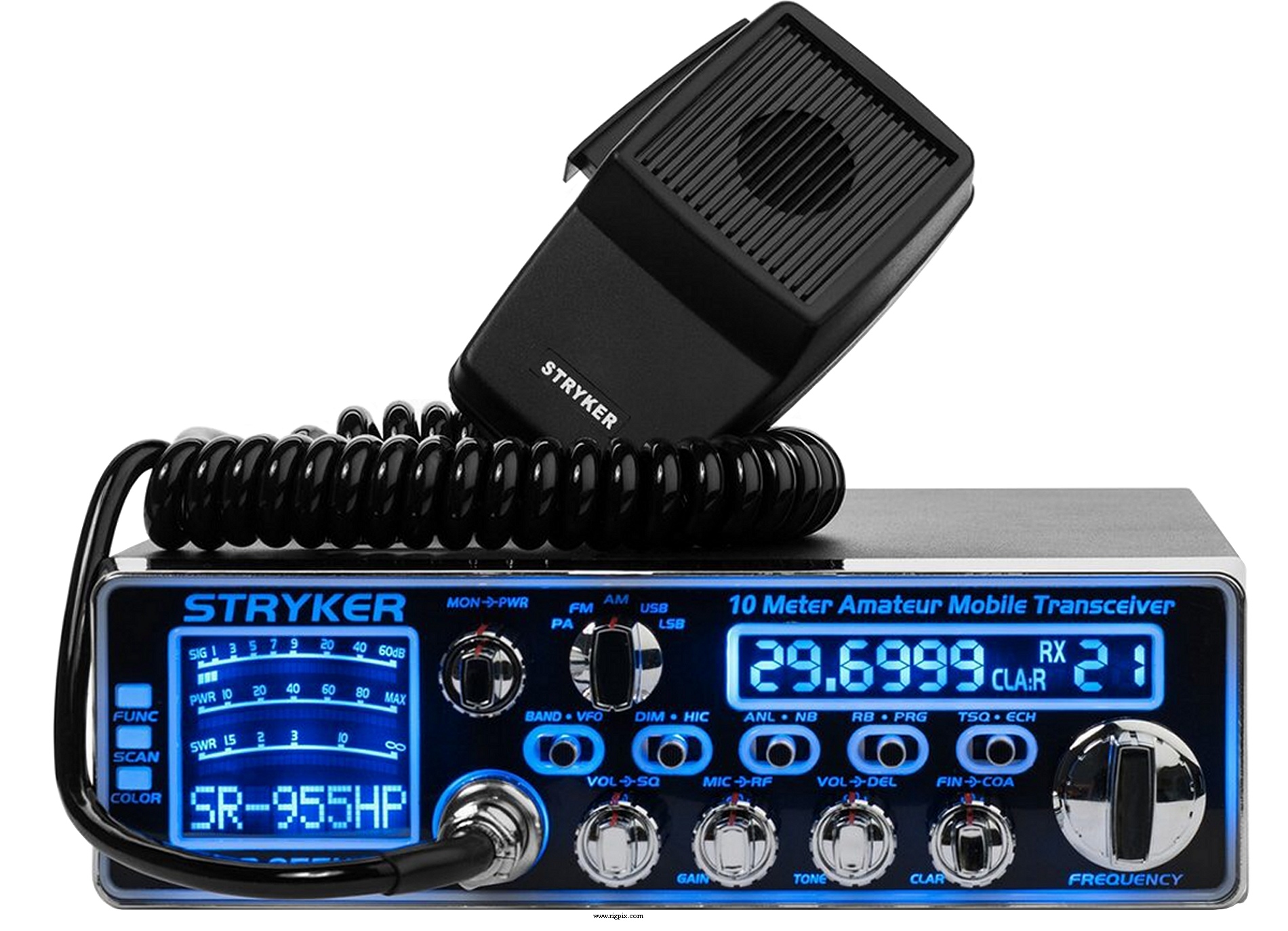

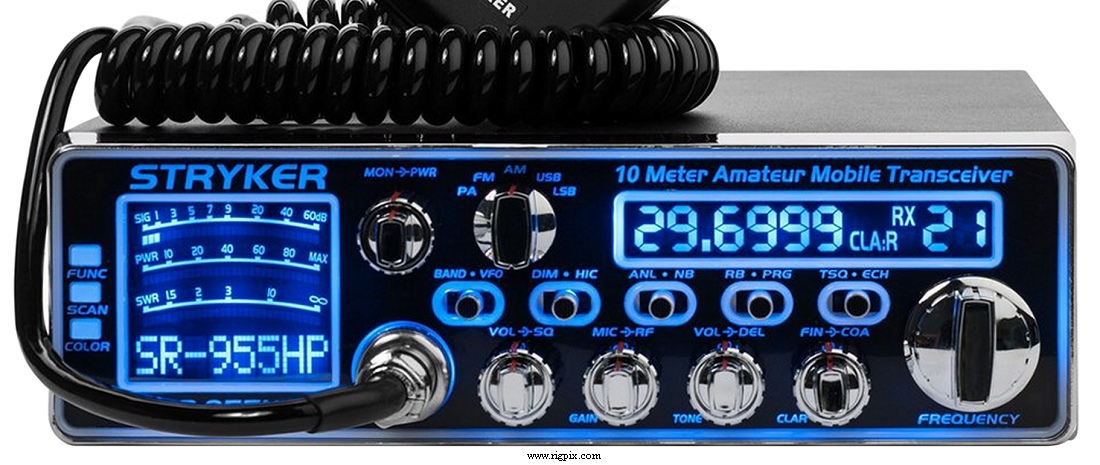

| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
24.000-30.015 MHz (Export mode)
24.890-24.990 / 28.000-29.700 MHz (10/12 m mode)
|
| Channels / tuning steps: | 400 (10*40) or VFO mode (100 Hz, 1 / 10 / 100 KHz, 1 MHz) |
| Mode: | AM / FM / SSB |
| Frequency control: | PLL / CPU |
| Frequency stability: | 0.001% @ -20 to +50°C (-4 to +122°F) |
| Clarifier or Delta tune: | RX: ±? KHz
TX: ±? KHz |
| Power supply: | 13.8 VDC (3-pin connector) |
| Current drain / power consumption: | RX: ? mA
TX: Max 12 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 226*60*286 mm (8.88*2.38*11.25") |
| Weight: | ? Kg (? lb) |
| Other features: |
PA. ANL/NB. Roger beep. Dimmer. Scanning. Hi-cut filter. SWR meter. Talkback.
Digital echo. PC-programmable. 7 color backlit faceplate. CTCSS/PL option.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB)
1st IF: 10.695 MHz
Double conversion superheterodyne (AM/FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: LT455HTD
|
| Sensitivity: |
AM: 1 uV (10 dB S/N)
FM: 1 uV (20 dB S/N)
SSB: 0.25 uV (10 dB S/N)
|
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | 65 dB |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 15 W (Carrier), 60+ W (PEP)
FM: 45 W
SSB: 60+ W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2012-202x |
| Main PCB: | 955PCB1 by ?
Double-sided with mainly SMD components |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (2.7 MB)
Service manual (3.5 MB)
RF final: Four FQP13N10
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
