| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: |
General market:
26.965-27.255 MHz
Sweden:
26.965-27.225 MHz
|
| Channels / tuning steps: | General: 23 (1-23)
Sweden: 23 (1-22 + 11A) |
| Mode: | AM |
| Frequency control: | XTAL-matrix (14 XTALs) |
| Frequency stability: | 0.003% @ -20 to +50°C (-4 to +122°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 11.7-15.9 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: 0.4-1 A
TX: Max 1.7 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 150*53*220 mm (5.91*2.09*8.66") |
| Weight: | 1.9 Kg (4.19 lb) |
| Other features: | PA. Noise limiter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 1 uV (10 dB S+N/N) |
| Squelch sensitivity: | 1 uV (Treshold)
200 uV (Tight) |
| Selectivity: | 6 KHz (-6 dB)
20 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1974-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (5.2 MB)
Service manual (5.5 MB)
RF driver: 2SC1475
RF final: 2SC756
|

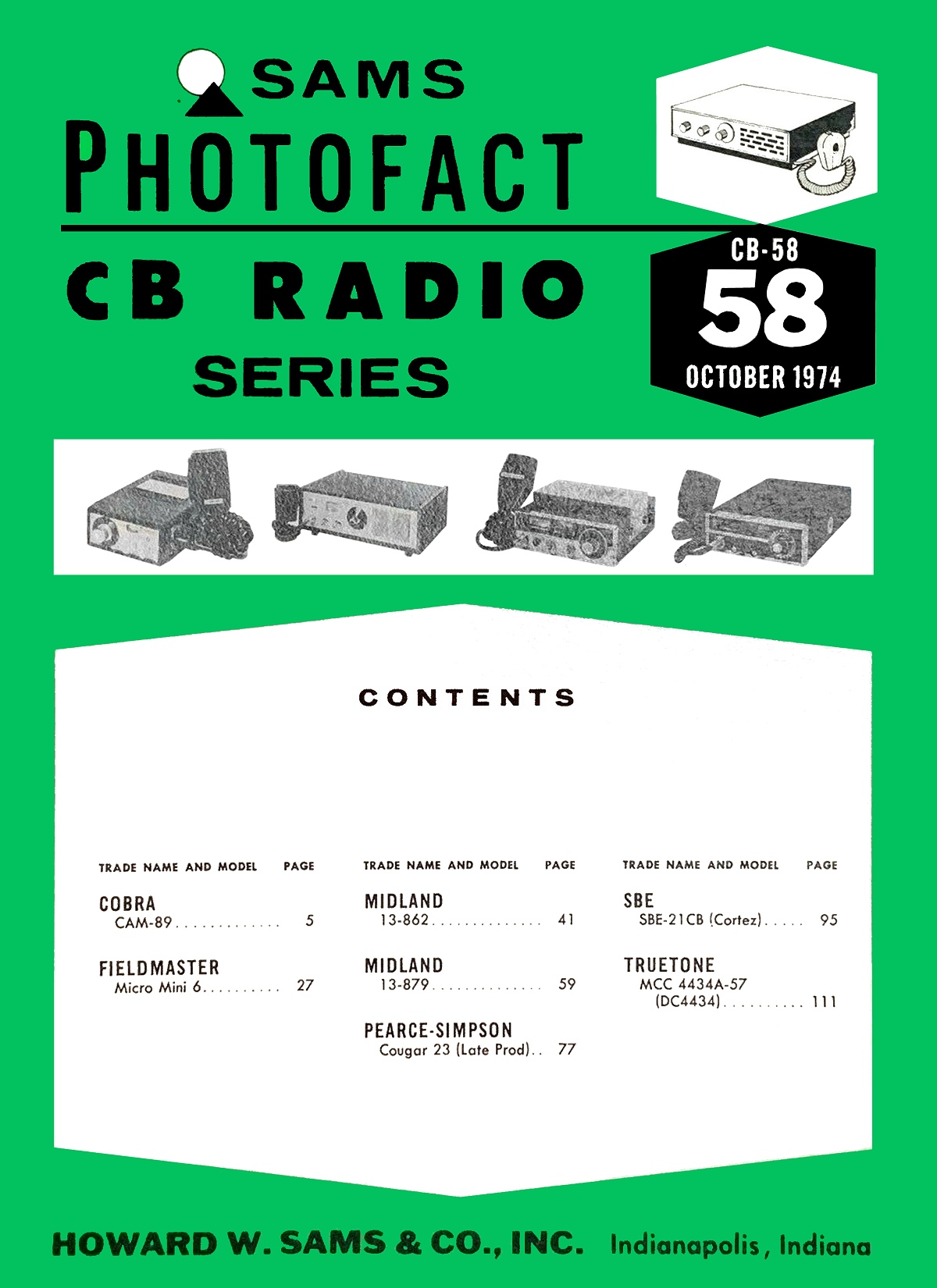

| Sams Photofact #: | CB-58 (October 1974) |
