| GENERAL |

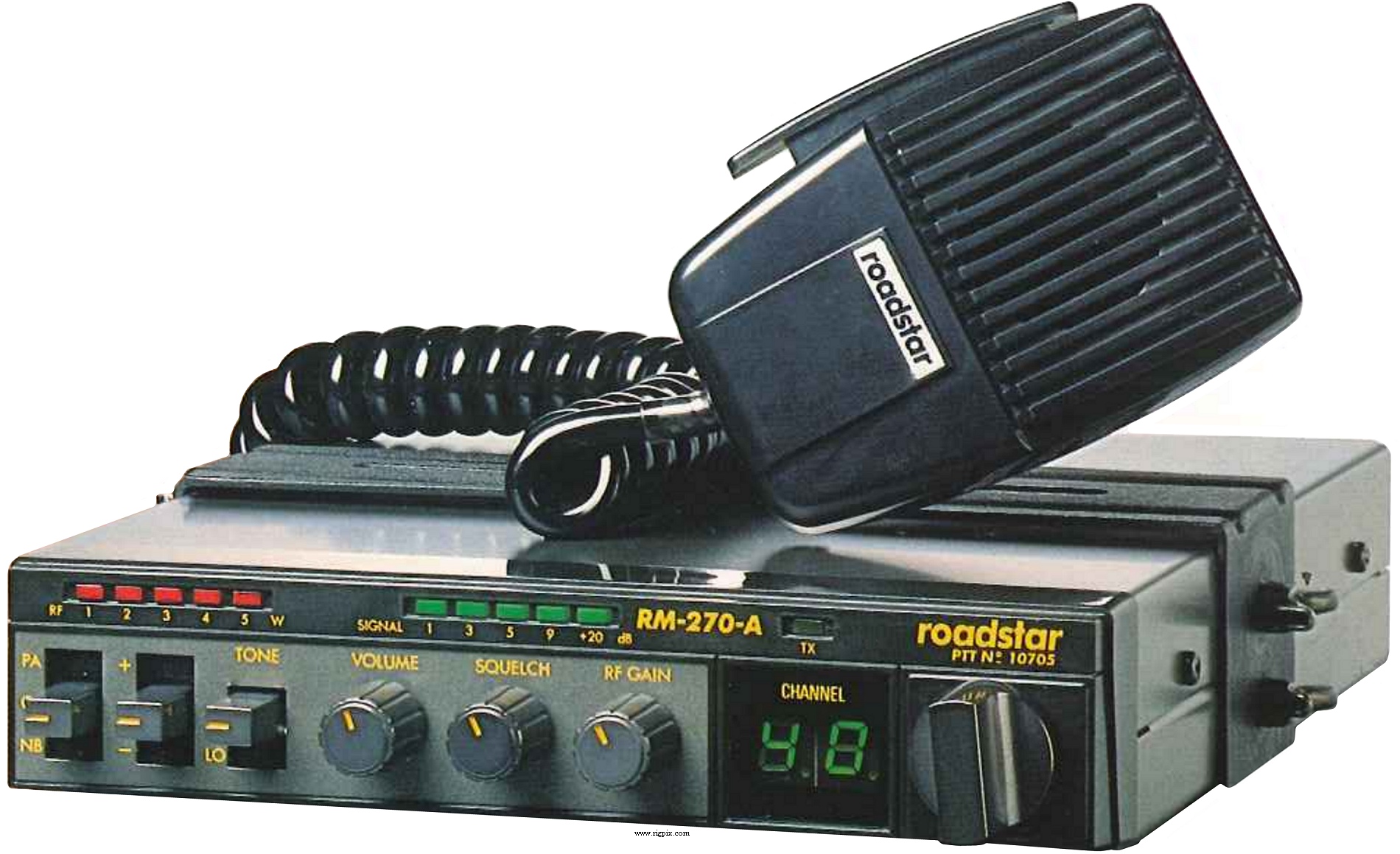

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | FM |
| Frequency control: | PLL |
| Frequency stability: | ±0.005% |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | 13.2 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 175*35*210 mm (6.89*1.38*8.27") |
| Weight: | 1.35 Kg (2.98 lb) |
| Other features: | PA. NB. Delta tune. Selcall jack. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | <0.5 uV (12 dB SINAD) |
| Selectivity: | 5 KHz (-6 dB) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 1.8 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | ±1.9 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 500 ohm / ?-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 198x-198x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | New price 1986 in Switzerland: CHF 478.- |
| Related documents: | |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
