| GENERAL |

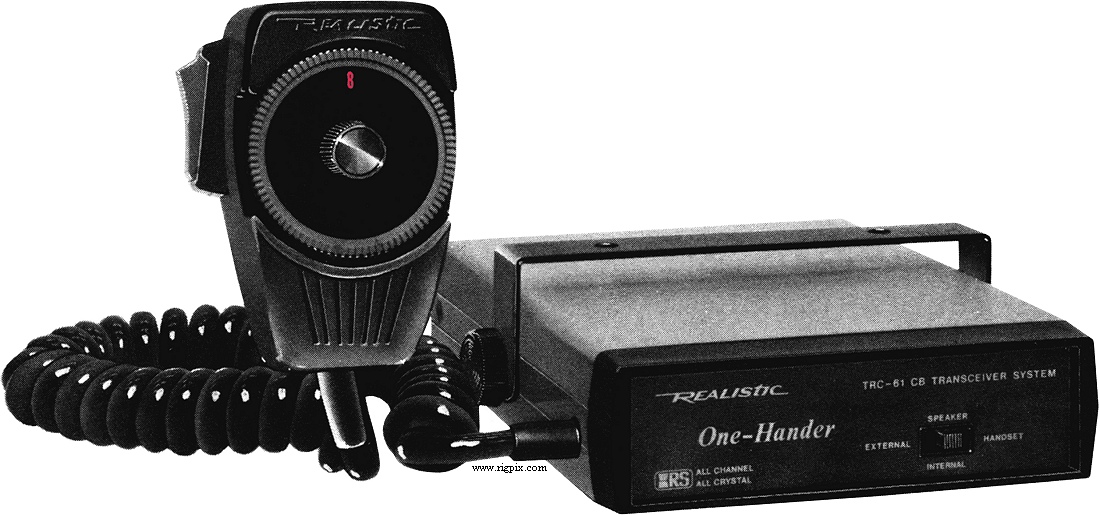

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | XTAL matrix (14 XTALs) |
| Frequency stability: | 0.005% (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC ±15% (Fixed power cord) |
| Current drain / power consumption: | RX: 180 mA (Squelched)
TX: Less than 1.8 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Radio unit: 133*38*178 mm (5.25*1.5*7")
Handset: ? mm (?") |
| Weight: | Radio unit: ? Kg (? lb)
Handset: ? g (? oz) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 11.275 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Clarifier or Delta tune: | Less than 0.5 uV (Threshold)
500 uV (Tight) |
| Selectivity: | 6 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8-16 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -55 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1976-197x (Discontinued) |
| Main PCB: |
GE-19C-4936E by GRE
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
Service manual (16.4 MB)
AF amplifier: Two 2SC1226A
RF final: 2SC1678
|
| Known markets and approvals: |
USA
FCC: Part 95 compliant
|
| Sams Photofact #: | CB-94 (August 1976) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
