Realistic TRC-460 (21-1559)

A picture of Realistic TRC-460 (21-1559)

SPECIFICATIONS

GENERAL
Type:Citizen band emergency transceiver
Frequency range:CB: 26.965-27.405 MHz
WX: 162.400-162.550 MHz (RX only)
Channels / tuning steps:CB: 40
WX: 3 weather channels
Mode:CB: AM
WX: FM
Frequency control:PLL (C5122)
Frequency stability:±?%
Clarifier or Delta tune:No
Power supply:12-14 VDC (Barrel connector, center positive)
or slide-on battery pack
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / Phono (RCA)
Dimensions (W*H*D):? mm (?")
Weight:? g (? lb)
Other features: Channel 9 switch.
Could also be used regular HT style with a slide-on battery
pack and the antenna attached on the top side




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:2.5 W
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:- / Internal only
Microphone input level:-




MISCELLANEOUS
Manufactured:China, 1991-199x (Discontinued)
Main PCB:
Sub PCBs:
Additional info:FCC ID: AAO21-1559
Related documents: PLL/Controller: C5122
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -

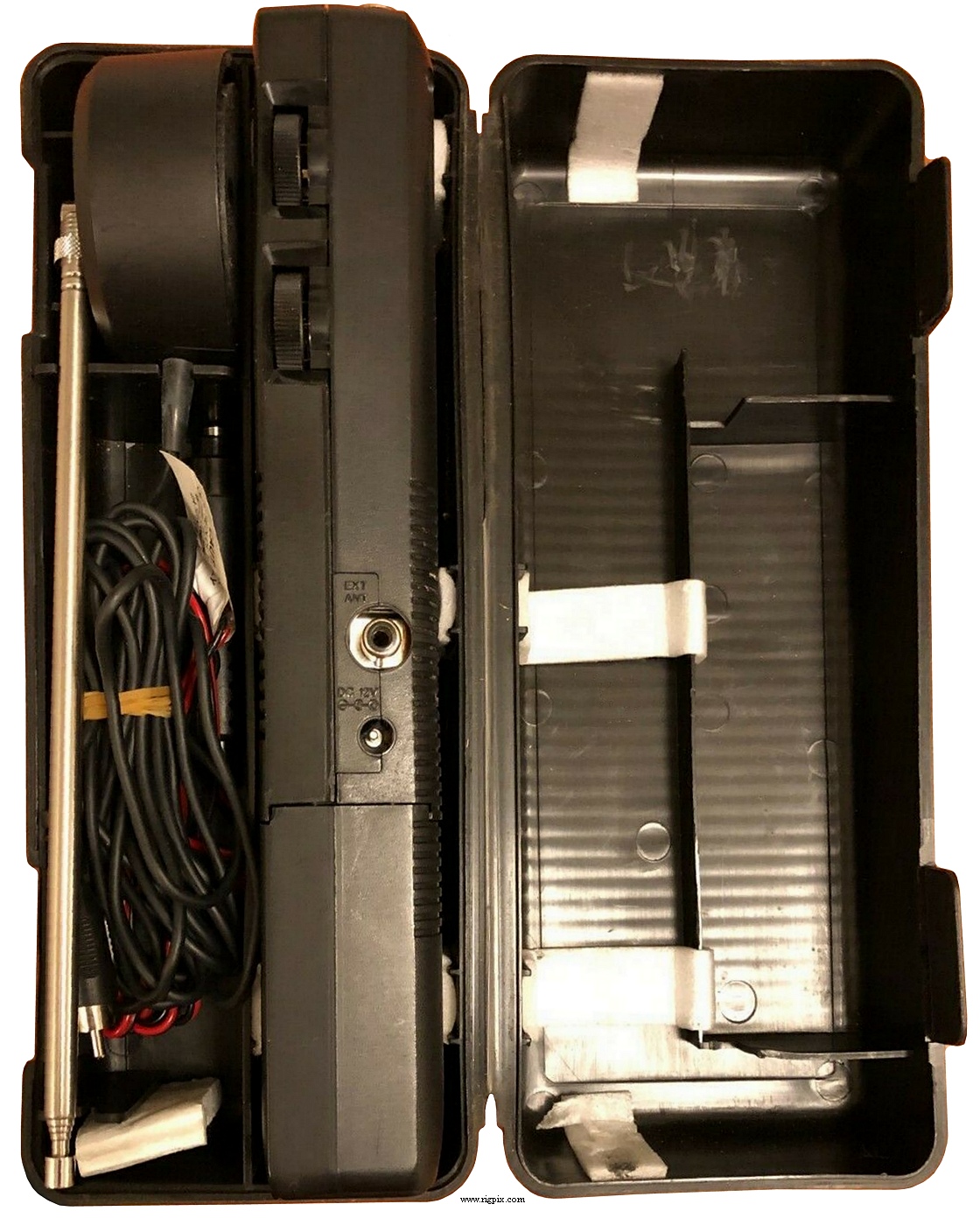

A picture of Realistic TRC-460 (21-1559) kit
