| GENERAL |

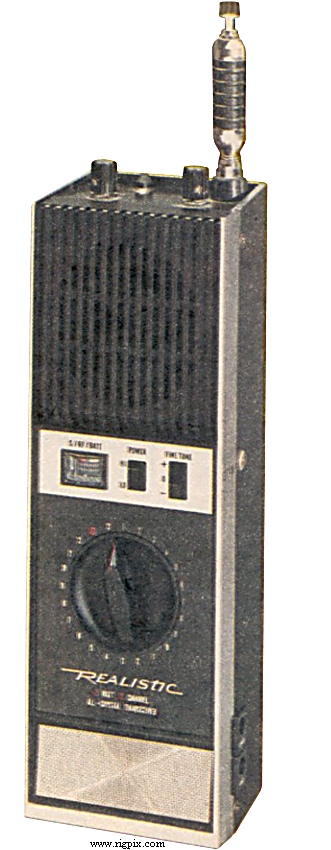

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | XTAL matrix |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | ? KHz "Fine tune" |
| Power supply: | 12-15 VDC (Ten R6/AA alkaline or NiCd batteries) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | Fixed telescopic whip
50 ohm / ? jack |
| Dimensions (W*H*D): | 86*248*57 mm (3.38*9.75*2.25") |
| Weight: | ? Kg (? lb) |
| Other features: | RF/battery meter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: ~3.5 W (5 W input)
Low: ? W
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1976-1977 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 1976 in the US: $149.95
New price 1977 in the US: $149.95
|
| Related documents: | |
| Known markets and approvals: |
USA
FCC: Type accepted
|
| Sams Photofact #: | CB-84 (March 1976) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
