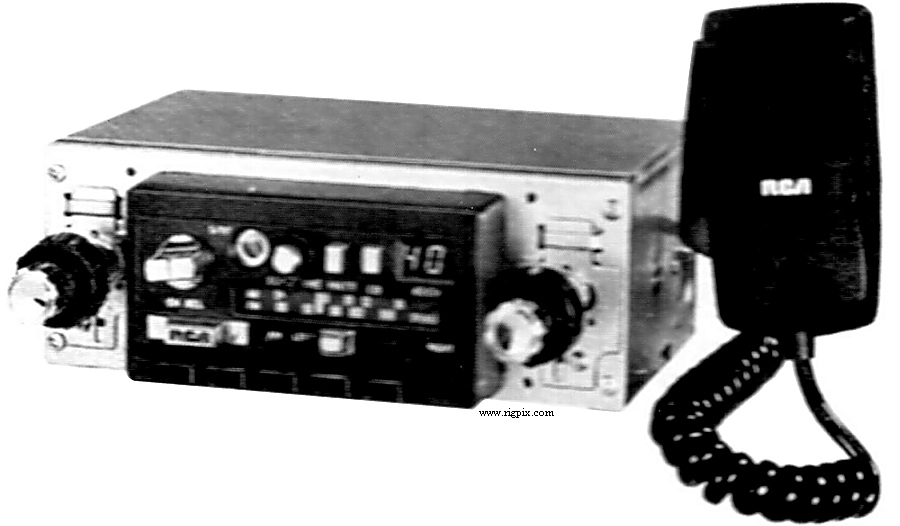

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: |
CB
26.965-27.405 MHz
Broadcast receiver
0.535-1.605 MHz
88-108 MHz
|
| Channels / tuning steps: | CB: 40
Broadcast receiver: Analog / continuous with five presets |
| Mode: | CB: AM
Broadcast receiver: AM / WFM Stereo |
| Frequency control: | CB: PLL (SM5118) |
| Frequency stability: | CB: ±0.005% (No temperature reference) |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | 11-16 VDC |
| Current drain / power consumption: |
RX: 600 mA @ 0.5 W audio output
TX: 800 mA (Unmodulated)
|
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 188*70*124 mm (7.4*2.76*4.88") |
| Weight: | 2.05 Kg (4.5 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (CB)
1st IF: 10.595 MHz
2nd IF: 455 KHz
Single conversion superheterodyne (Broadcast AM)
IF: 455 KHz
Single conversion superheterodyne (Broadcast WFM Stereo)
IF: 10.7 MHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | CB: 5 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | 2*3.5 W at 10% distortion / No internal speaker |
| External speaker connector: | 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 5-pin DIN (180°) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1977-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
Service manual (38.7 MB)
RF driver: 2SC1973
RF final: 2SC1974
|
| Known markets and approvals: |
USA
FCC Data: ?
|
| Sams Photofact #: | CB-223 (October 1978) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
