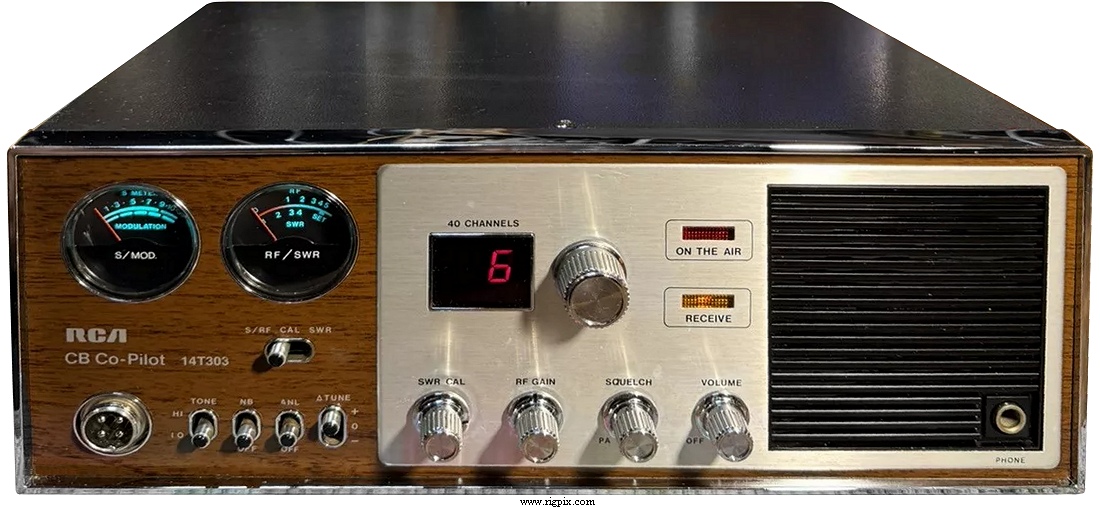

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | ±0.005% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | Mains: 105-120 VAC (Male 2-pin jack)
or 12-15 VDC (Male 2-pin jack) |
| Current drain / power consumption: | RX: Max 1.2 A (Full audio) @ 13.8 VDC
TX: Max 1.5 A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 311*108*257 mm (12.24*4.25*10.12") |
| Weight: | 4 Kg (8.82 lb) |
| Other features: | PA. NB/ANL. Tone hi-cut. SWR meter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S/N) |
| Squelch sensitivity: | 1.5 uV (Threshold)
100 uV (Tight) |
| Selectivity: | 40 dB (Adjacent channel) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1977-197x (Discontinued) |
| Main PCB: |
PTBM050COX by Cybernet Electronics Corporation
|
| Sub PCBs: |
EPO-0612B - PSU/AVR board
PTSR008COX - SWR and mod meter board
PTLD016COX - LED channel display board
PTSW020COX - Channel selector board
|
| Additional info: | |
| Related documents: |
Service manual (34.2 MB)
PLL: PLL02A
AF amplifier: TA7205P
|
| Known markets and approvals: |
USA
FCC Data: 14T303
|
| Sams Photofact #: | CB-210 (August 1978) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
