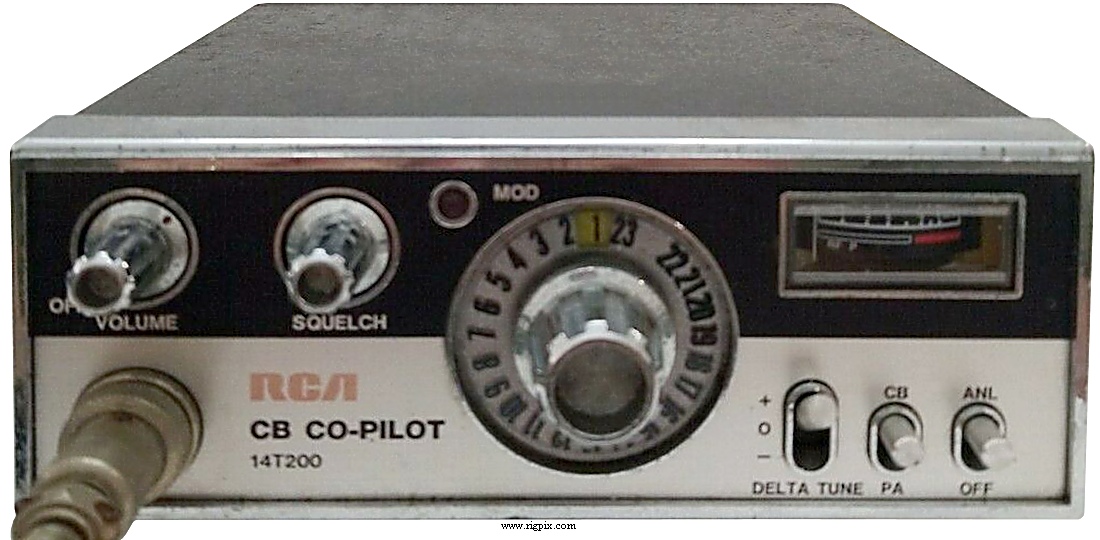

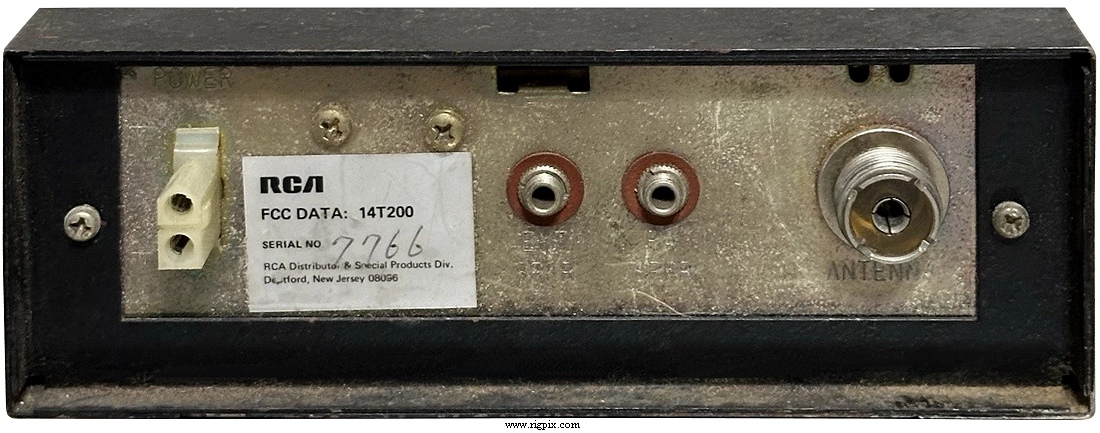

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | XTAL matrix (14 XTALs) |
| Frequency stability: | ±0.005% (No temperature reference) |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | 13.8 VDC (2-pin jack) |
| Current drain / power consumption: | RX: 0.24 to 1.1 A
TX: Max 1.4 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 165*61*197 mm (6.5*2.4*7.75") |
| Weight: | 1.5 Kg (3.3 lb) |
| Other features: | PA. ANL. Modulation LED. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.595-10.635 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S+N/N) |
| Squelch sensitivity: | 0.5 uV (Threshold)
100 uV (Tight) |
| Selectivity: | 6 KHz (-6 dB)
20 KHz (-50 dB) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1976-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
MSRP, august 1976 in the US: $169.95
|
| Related documents: |
Service manual (6.6 MB)
|
| Known markets and approvals: |
USA
FCC Data: 14T200
|
| Sams Photofact #: | CB-91 (July 1976) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
