| GENERAL |
| Type: | Citizen band transceiver |
Frequency range
depending on setting: |
| EC: | 26.965-27.405 MHz |
| EU: | 26.965-27.405 MHz |
| d: | 26.565-27.405 MHz |
| PL: | 26.960-27.400 MHz |
| U: | 26.965-27.405 / 27.60125-27.99125 MHz |
| In: | 26.965-27.275 MHz |
| Export: | 26.?-27.? MHz (After modification) |
|
Channels / tuning steps
depending on setting: | 27, 40 or 80
120 (Export mode) |
| Mode: | AM / FM |
| Frequency control: | PLL |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12 / 24 VDC (Fixed power cord) |
| Current drain / power consumption: |
RX: 210-620 mA @ 13.2 VDC - 110-310 mA @ 26.4 VDC
TX: Max 2.3 A @ 13.2 VDC - Max 1.3 A @ 26.4 VDC
|
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Transceiver: 140*45*115 mm (5.51*1.77*4.53")
Mike : 40*100*58 mm (1.57*3.94*2.28") |
| Weight: | Transceiver: 600 g (1.32 lb)
Mike: 130 g (4.58 oz) |
| Other features: |

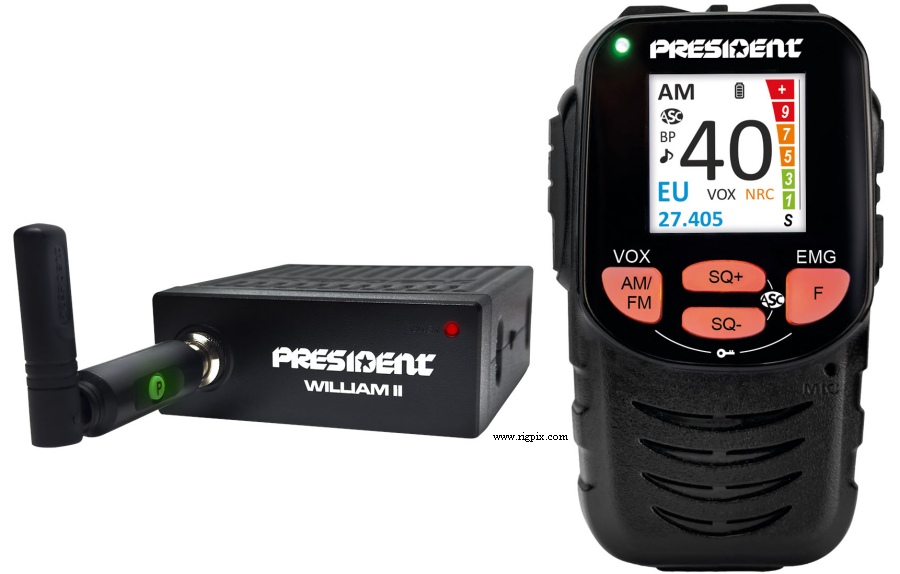

"Black box" with bluetooth speaker-mike. USB-C charging. Dimmer.
VOX. Two emergency channels. Scanning. Roger beep. ANL. ASC.
RX/TX noise reduction (NRC). 7-color backlit keypad.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 450 KHz - Ceramic filter: WM50HT
|
| Sensitivity: |
AM: 0.5 uV (20 dB SINAD)
FM: 0.35 uV (20 dB SINAD)
|
| Squelch sensitivity: | 0.2 uV (Threshold)
1 mV (Tight) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 2.5 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W (8 W in export mode) |
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -54 dBm |
| Microphone impedance / connector: | ? ohm / 6-pin (Male GX16 locking ring jack), for the bluetooth dongle |
| Microphone input level: | 7 mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2025-202x |
| Main PCB: |
2025-06-18: 3600B401 411005 by ?
Double sided with mainly SMD components
|
| Sub PCBs: | |
| Additional info: |
New price, august 2026 in Sweden: SEK 1995:-
New price, august 2026 in Germany: €179.00
|
| Related documents: |
User manual (3.9 MB)
|
| Known markets and approvals: |
Europe
Directive 2014/53/EU compliant
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
