| GENERAL |

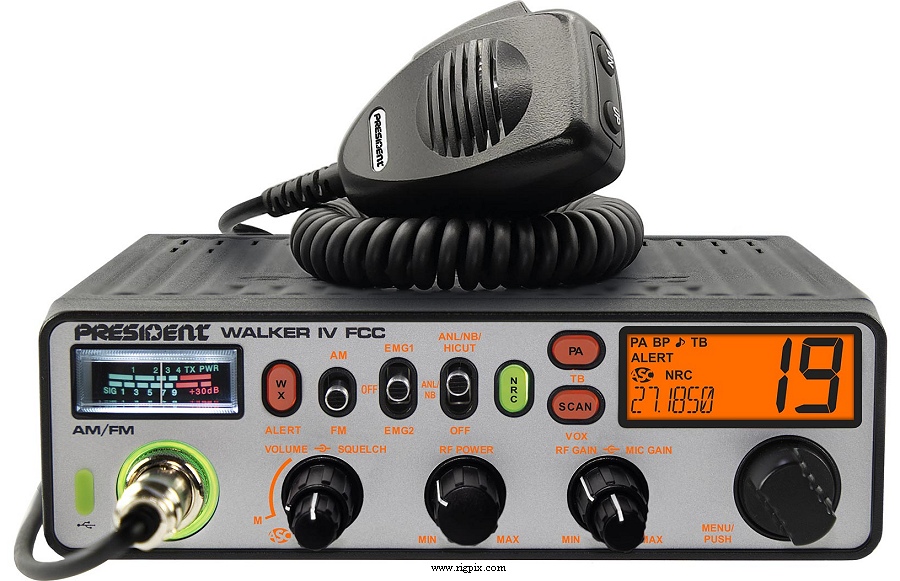

| Type: | Citizen band transceiver |
| Frequency range: |
CB: 26.965-27.405 MHz
WX: 162.400-162.550 MHz (RX only) |
| Channels / tuning steps: |
CB: 40 regular + five P-channels
NOAA WX: 7
|
| Mode: | AM / FM |
| Frequency control: | PLL |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: 180-500 mA
TX: Less than 2 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 185*56*172 mm (7.28*2.2*6.77") |
| Weight: | 1.2 Kg (2.64 lb) |
| Other features: |
PA. ANL/NB. ASC. Scanning. USB-C charging port (PD up to 2.22 A).
Talkback. Roger beep. Tone hi-cut. VOX. Seven selectable backlite colors.
Dimmer. NOAA wether alert. SWR meter. Two programmable emergency
channels. Glow mode (Backlit faceplate). RX/TX noise reduction (NRC).
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: |
AM: 0.5 uV (20 dB SINAD)
FM: 0.3 uV (20 dB SINAD)
|
| Squelch sensitivity: | 0.2 uV (Threshold)
1 mV (Tight) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
FM: 4 W
|
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -54 dB |
| Microphone impedance / connector: | ? ohm / 6-pin (Male GX16 locking ring jack) |
| Microphone input level: | 3 mV (No reference) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2026-202x |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (2.1 MB)
|
| Known markets and approvals: |
Canada
IC: 20240-PC221
USA
FCC ID: 2AEOCPC221
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
