| GENERAL |

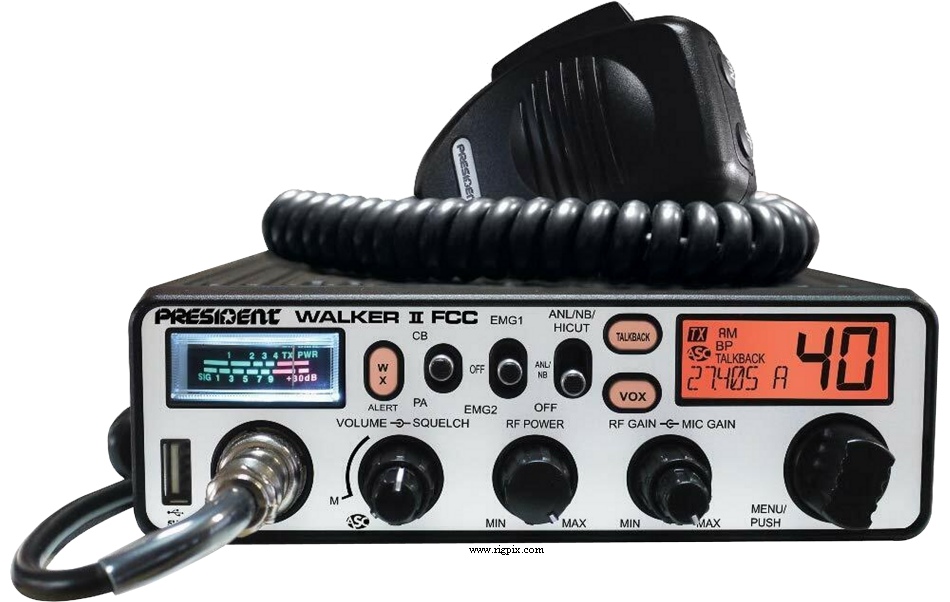

| Type: | Citizen band transceiver |
| Frequency range: |
CB: 26.965-27.405 MHz
WX: 162.400-162.550 MHz (RX only) |
| Channels / tuning steps: |
CB: 40
NOAA WX: 7
|
| Mode: | TX: AM
RX: AM / FM |
| Frequency control: | PLL |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: 180-500 mA
TX: Less than 2 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 170*52*160 mm (6.69*2.04*6.29") |
| Weight: | 1.1 Kg (2.43 lb) |
| Other features: |
PA. ANL/NB. ASC. Scanning. USB charging port (5 V, 2.1 A).
Talkback. Roger beep. Tone hi-cut. VOX. Seven selectable backlite
colors. Dimmer. NOAA wether alert. SWR meter. Two programmable
emergency channels.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz - Ceramic filter: LT455HT
|
| Sensitivity: |
0.5 uV (20 dB SINAD)
|
| Squelch sensitivity: | 0.2 uV (Threshold)
1 mV (Tight) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -54 dBm |
| Microphone impedance / connector: | ? ohm / 6-pin (Male GX16 locking ring jack) |
| Microphone input level: | 3 mV (No reference) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2019-2021 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (1.5 MB)
|
| Known markets and approvals: |
USA
FCC ID: 2AEOCPC203
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
