| GENERAL |

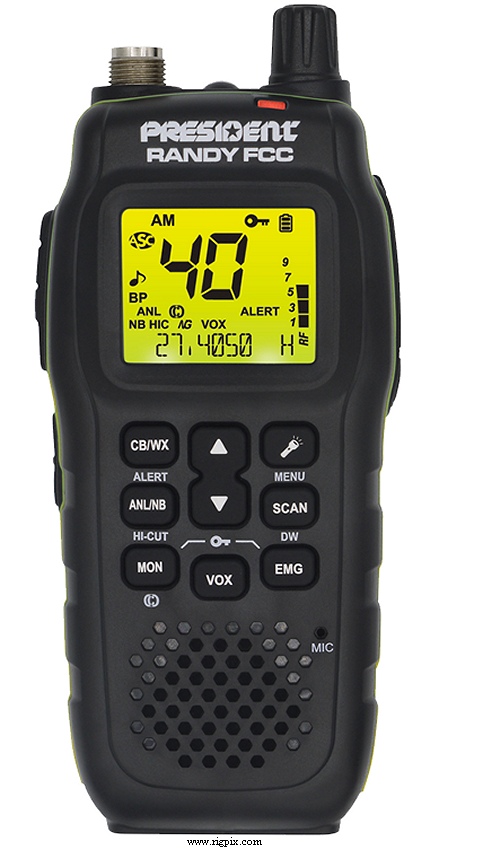

| Type: | Citizen band transceiver |
| Frequency range: |
CB: 26.965-27.405 MHz
WX: 162.400-162.550 MHz (Receive only)
|
| Channels / tuning steps: | CB: 40
WX: 7 |
| Mode: | CB: AM
WX: FM |
| Frequency control: | PLL |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 7.4 VDC (Li-Ion battery pack)
or 13.8 VDC (With car adapter) |
| Current drain / power consumption: | RX: ? mA
TX: Max 1.8 A |
| Antenna impedance / connector: | 50 ohm / TNC |
| Dimensions (W*H*D): | 66*152*37 mm (2.62*5.98*1.46") |
| Weight: | 305 g (10.8 oz), with battery |
| Other features: |
ANL/NB. ASC. VOX. Dual watch. Scanning. LED flashlight.
Emergency channel. Tone hi-cut. Roger beep. NOAA weather alert.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: |
CB (AM): 0.5 uV (20 dB SINAD)
WX (FM): 0.3 uV (20 dB SINAD)
|
| Squelch sensitivity: | 0.2 uV (Threshold)
1 mV (Tight) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 1 W at ?% distortion / 16 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 4 W
Low: 1 W
|
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -54 dBm |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | 6 mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2021-2022 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (1.7 MB)
|
| Known markets and approvals: |
USA
FCC ID: ?
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
ACMR402
|
Li-Ion battery pack. 7.4 V, 1800 mAh, 13.32 Wh
|
|
