| GENERAL |

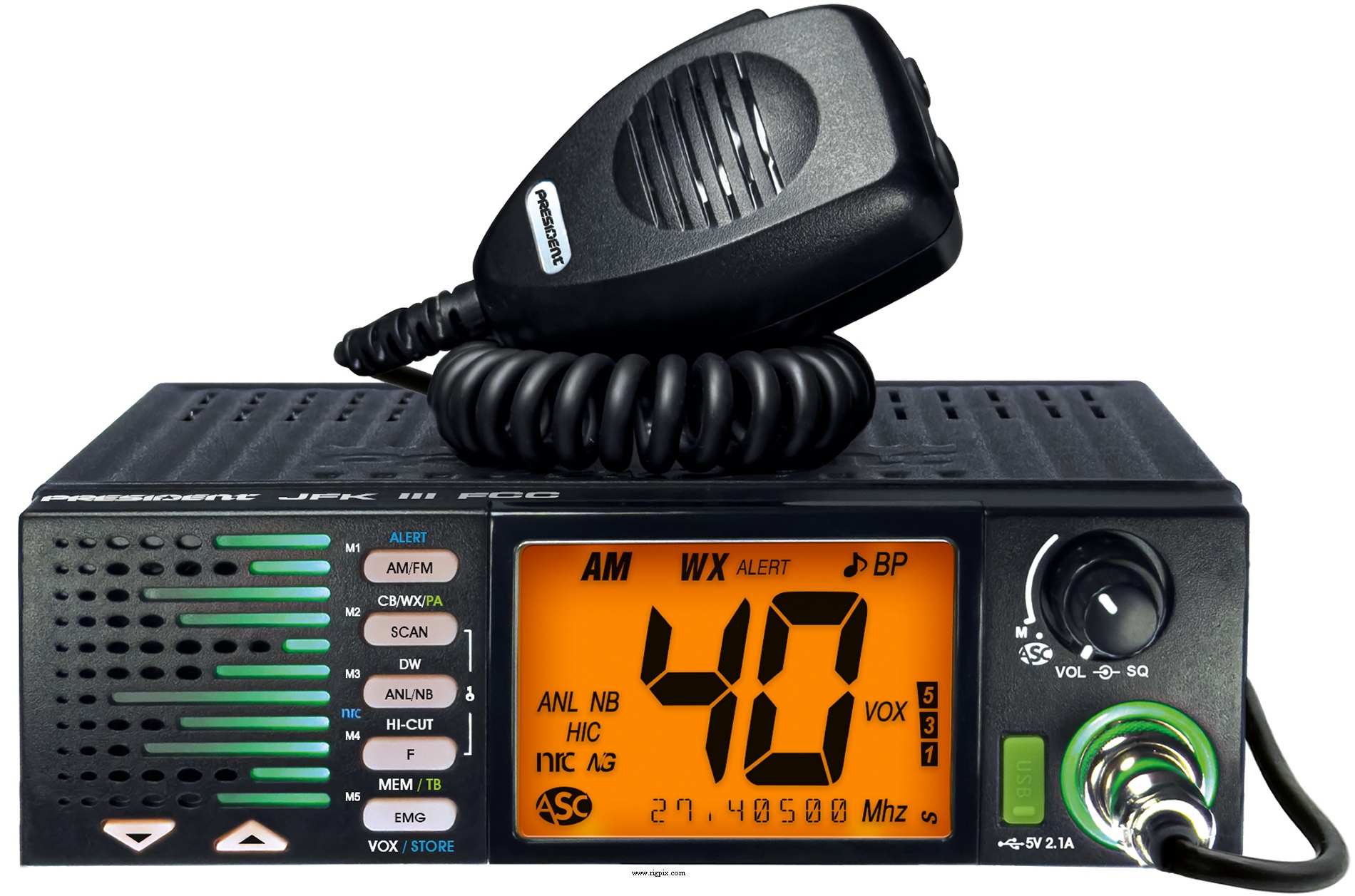

| Type: | Citizen band transceiver |
| Frequency range: |
CB: 26.965-27.405 MHz
WX: 162.400-162.550 MHz (RX only)
|
| Channels / tuning steps: | CB: 40
WX: 7 |
| Mode: | AM / FM |
| Frequency control: | PLL |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.2 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: 300-600 mA
TX: Less than 2.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 185*57*175 mm (7.28*2.24*6.89") |
| Weight: | 1.1 Kg (2.43 lb) |
| Other features: |
PA. ANL/NB. SWR meter. 5 memories. Scanning. Tone hi-cut.
Noise reduction. NOAA weather alert. VOX. USB-A jack (For
device charging). Dimmer. ASC. Roger beep. Dual watch.
7 color selectable backlite. Channel and frequency display.
Talkback. Programmable emergency channel button.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz - Ceramic filter: LT455HT
|
| Sensitivity: |
AM: 0.5 uV (20 dB SINAD)
FM: 0.35 uV (20 dB SINAD)
|
| Squelch sensitivity: |
0.2 uV (Threshold)
1 mV (Tight)
|
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
FM: 4 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 6-pin (Male locking ring jack) |
| Microphone input level: | 3 mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2025-202x |
| Main PCB: |
Double sided with mainly SMD components
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: | User manual (4.1 MB, Multilanguage) |
| Known markets and approvals: |
Canada
IC: 20240-PC220
USA
FCC ID: 2AEOCPC220
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
