| GENERAL |

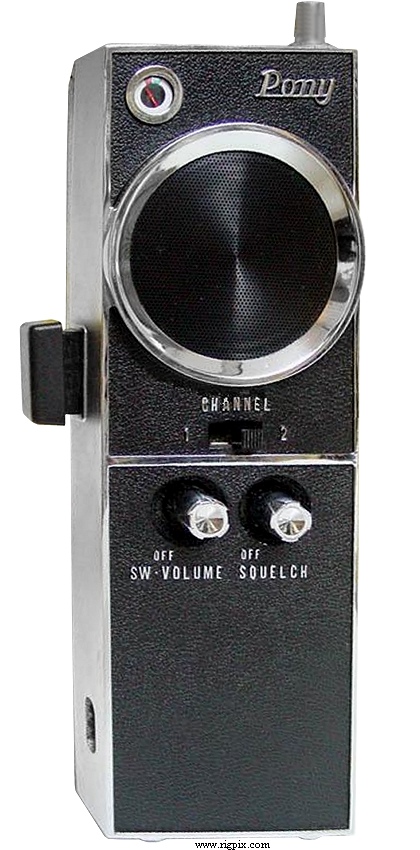

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 2 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ±0.005% @ 0 to 40°C (14 to 104°F) |
| Power supply: | 12 VDC (Eight LR6 / AA batteries)
or 12 VDC external (Male barrel jack) |
| Current drain / power consumption: | RX: 25 mA
TX: Max 170 mA |
| Antenna impedance / connector: | 50 ohm / ?
Fixed telescopic whip |
| Dimensions (W*H*D): | 82*248*54 mm (3.23*9.76*2.12") |
| Weight: | 1.2 Kg (2.64 lb) |
| Other features: | Battery indicator. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 800 mW at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~750 mW (1.5 W input) |
| Modulation system: | Collector amplitude modulation |
| Max AM modulation (Factory set): | ? % |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 8 ohm / Internal only |
| Microphone input level: | - |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan (By Kanda Tsushin Kogyo Co. Ltd.), 196x-1970 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
Schematic diagram (228 KB)
|
| Known markets and approvals: |
Sweden
Kungliga Telestyrelsen
West Germany
FTZ-?
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
