| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
Export mode: 25.615-28.305 MHz in six bands
| A: | 25.615-26.055 MHz |
| B: | 26.065-26.505 MHz |
| C: | 26.515-26.955 MHz |
| D: | 26.965-27.405 MHz |
| E: | 27.415-27.855 MHz |
| F: | 27.865-28.305 MHz |
|
| Channels / tuning steps: | 240 |
| Mode: | AM |
| Frequency control: | PLL |
| Frequency stability: | ±0.001% @ -20 to +50°C (-4 to +122°F) |
| Clarifier or Delta tune: | No |

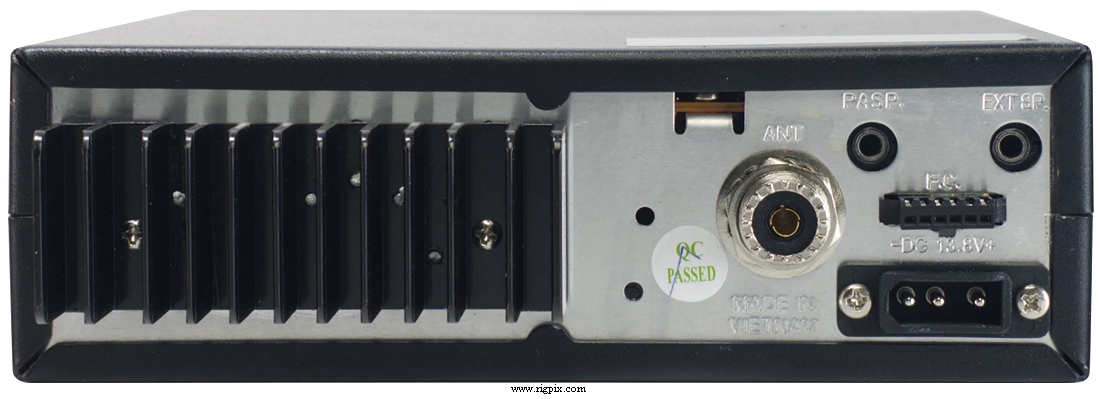

| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 185*56*219 mm (7.3*2.2*8.6") |
| Weight: | 1.9 Kg (4.2 lb) |
| Other features: |
PA. Channel 19 switch. NB/ANL. Dimmer. Echo chamber.
Talkback. External frequency counter jack.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB SINAD) |
| Squelch sensitivity: | Less than 0.5 uV (Threshold) |
| Selectivity: | |
| Image rejection: | 50 dB |
| AF output power / speaker: | 4 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 12 W (Carrier)
60 W (PEP) |
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Vietnam, 2026-202x |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
Two RT5 MOSFET finals.
New price, july 2026 in the US: $269.95
|
| Related documents: | |
| Known markets and approvals: |
Export
No known approvals for CB use
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
