| GENERAL |

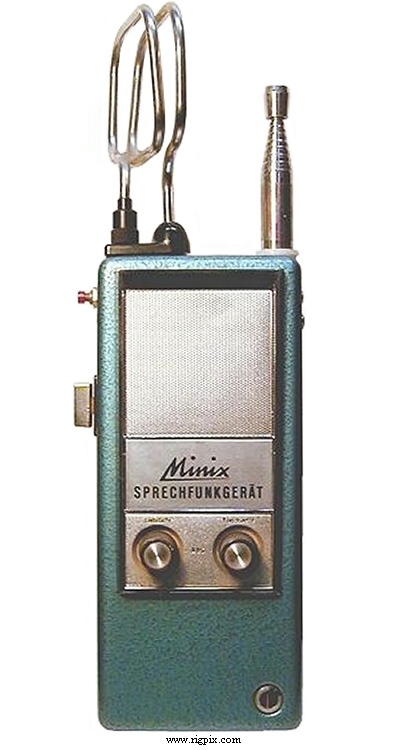

| Type: | Citizen band transceiver |
| Frequency range: | 26.690-27.280 MHz |
| Channels/tuning steps: | 2 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ±?% |
| Power supply: | 12 VDC |
| Current drain/power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance/connector: | - / Fixed telescopic whip |
| Dimensions (W*H*D): | 90*320*60 mm (3.54*12.6*2.36") |
| Weight: | 1.5 Kg (3.31 lb) |
| Other features: | Battery meter. Tone call. Frame antenna. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: | ? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz |
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power/speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 100 mW |
| Modulation system: | |
| FM deviation: | No FM |
| Spurious emissions: | Less than -? dB |
| Microphone impedance/connector: | ? ohm / ?-pin |
| Microphone input sensitivity: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Main PCB: | |
| Additional info: | |
| Related documents: | |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options/Accessories: |
|
