| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL: PLL02A(G) |
| Frequency stability: | |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |

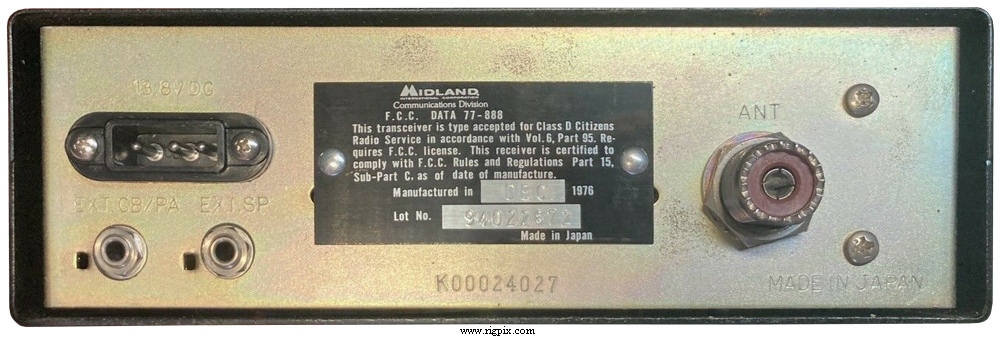

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 178*59*210 mm (7*2.31*8.25") |
| Weight: | 1.5 Kg (3.3 lb) |
| Other features: | PA. NB/ANL. SWR-meter. AWI (SWR warning). |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |

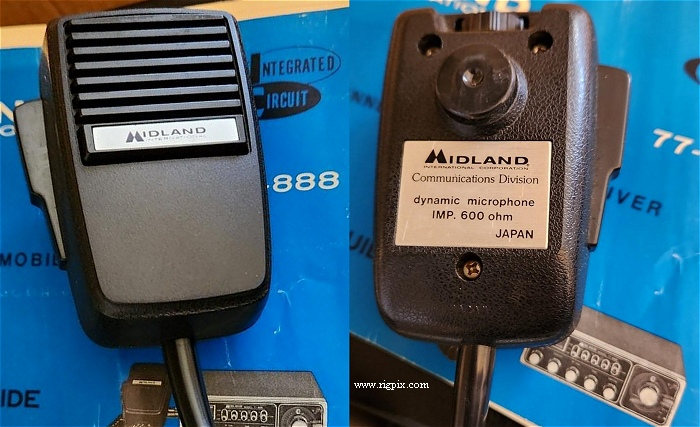

| Microphone impedance / connector: | 600 ohm / 6-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1976-1978 (Discontinued) |
| Main PCB: | PTBM049AOX by Cybernet Electronics Corporation |
| Sub PCBs: |
PT? - SWR board
|
| Additional info: | |
| Related documents: |
PLL: PLL02A(G)
|
| Known markets and approvals: |
USA
FCC Data: 77-888
|
| Sams Photofact #: | CB-131 (August 1977) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
