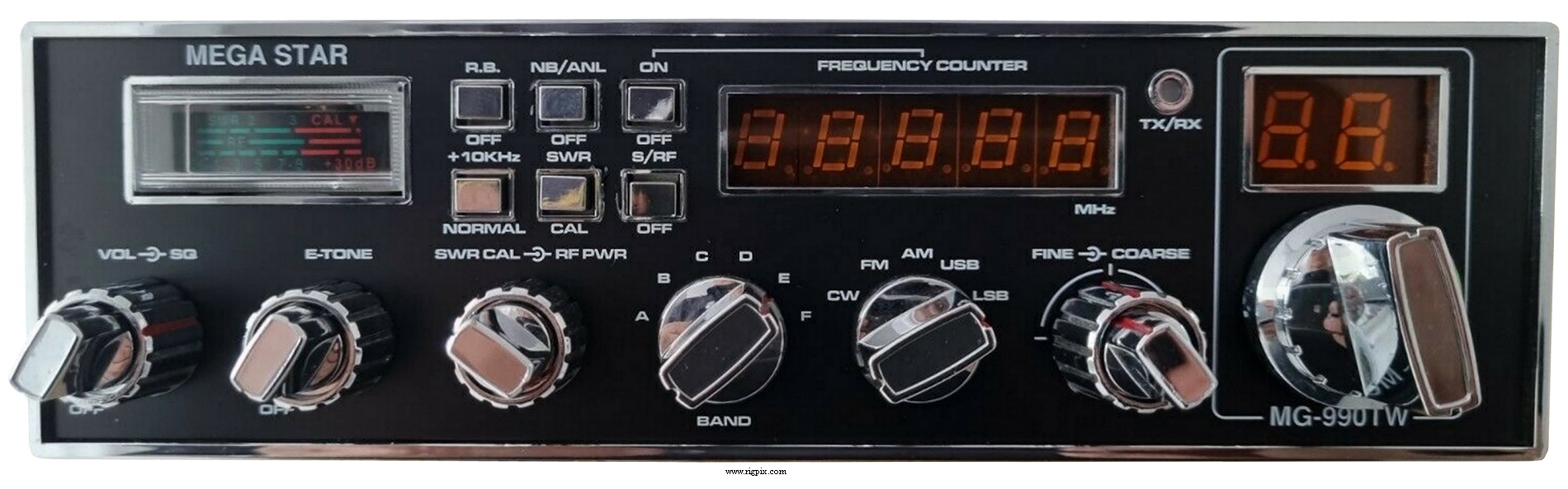

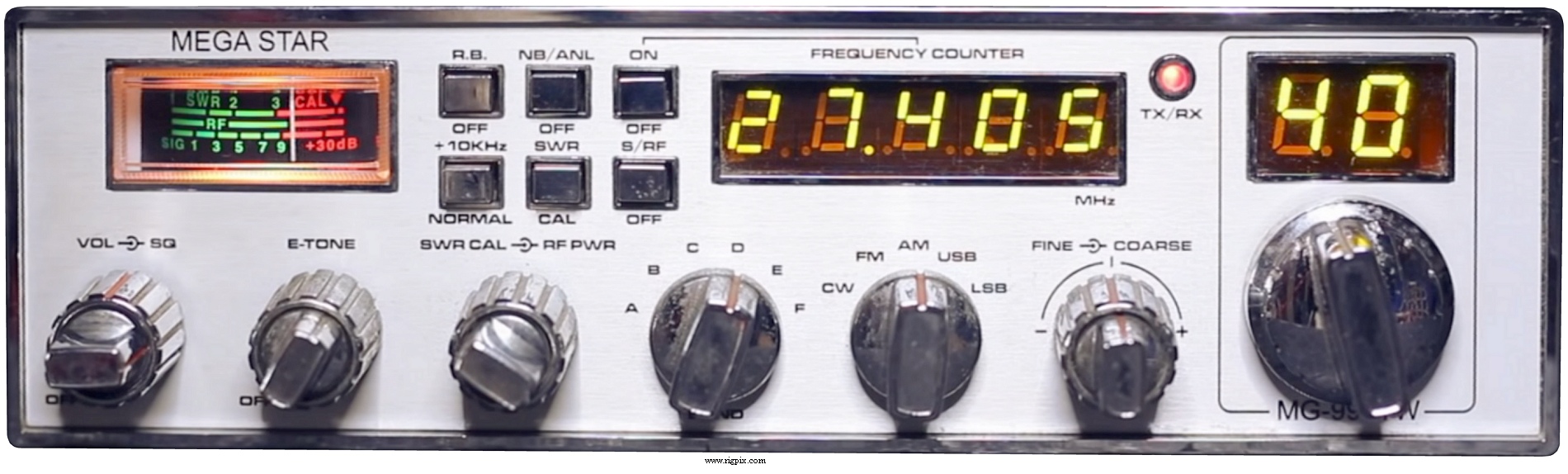

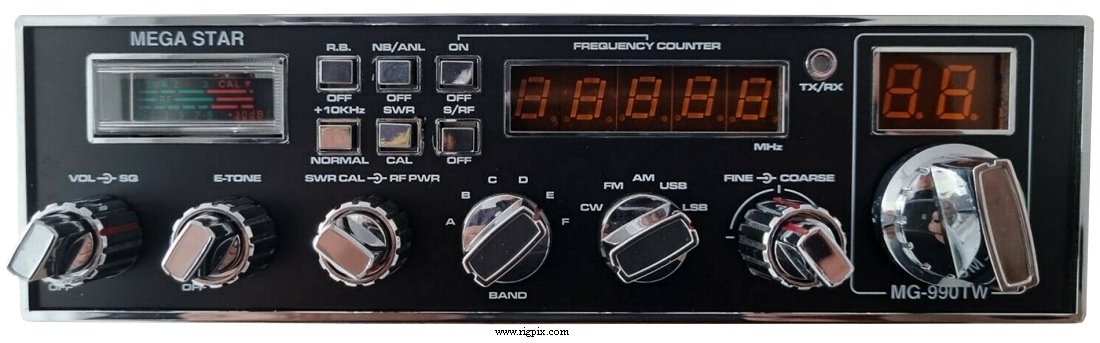

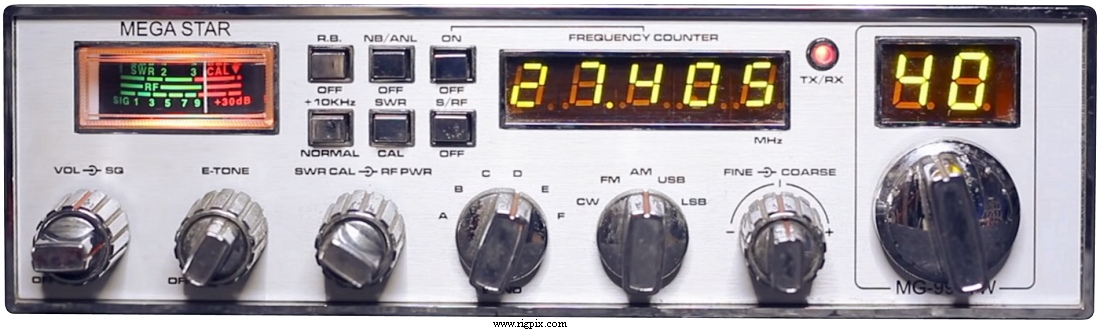

| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
25.615-28.315 MHz in six bands
A: 25.615-26.055 MHz
B: 26.065-26.505 MHz
C: 26.515-26.955 MHz
D: 26.965-27.405 MHz
E: 27.415-27.855 MHz
F: 27.865-29.305 MHz + 10 KHz
|
| Channels / tuning steps: | 271 (Including +10 KHz "Alphas") |
| Mode: | AM / FM / SSB / CW |
| Frequency control: | PLL |
| Frequency stability: | 0.001% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | Coarse (RX/TX): ±? KHz
Fine: ±1 KHz |
| Power supply: | 11.7-15.9 VDC (3-pin connector) |
| Current drain / power consumption: | RX: 0.3-1.2 A
TX: Max 6 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | ANL/NB. Roger beep. +10 KHz switch. Dual echo. SWR meter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB/CW)
IF: 10.695 MHz
Double conversion superheterodyne (AM/FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 1 uV (10 dB S+N/N)
FM: 1 uV (20 dB S+N/N)
SSB: 0.25 uV (10 dB S+N/N)
|
| Selectivity: |
AM/FM: 3 KHz (-6 dB), 9 KHz (-50 dB)
SSB: 2.1 KHz (-6 dB), 3.3 KHz (-60 dB)
|
| Image rejection: | 65 dB |
| AF output power / speaker: | 4 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 10 W
FM: 10 W
SSB: 25 W (PEP)
|
| Modulation system: | |
| FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Malaysia and Vietnam, 199x-20xx |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: | |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
