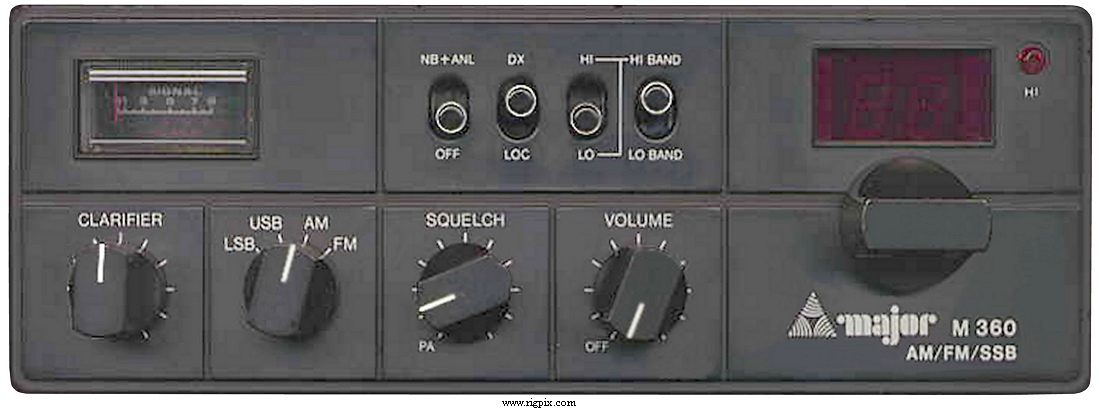

| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
26.515-28.305 MHz in four bands:
| Lo-Lo: | 26.515-26.955 MHz |
| Lo-Hi: | 26.965-27.405 MHz |
| Hi-Lo: | 27.415-27.855 MHz |
| Hi-Hi: | 27.865-28.305 MHz |
|
| Channels / tuning steps: | 160 (4*40) |
| Mode: | AM / FM / SSB |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | ±? Hz |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | ANL/NB. Local/DX switch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB)
IF: 10.695 MHz
Double conversion superheterodyne (AM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.18 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM/FM: 10 W
SSB: 12 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 19xx-19xx (Discontinued) |
| Main PCB: | PTBM059COX by Cybernet Electronics Corporation |
| Sub PCBs: | |
| Additional info: | |
| Related documents: | PLL: PLL02A |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
