Magnum S-3200B

A picture of Magnum S-3200B

SPECIFICATIONS

GENERAL
Type:Citizen band / "Freeband" / Export transceiver
Frequency range: 25.165-28.755 in 8 bands
A:   25.165-25.605 MHz
B:   25.615-26.055 MHz
C:   26.065-26.505 MHz
D:   26.515-26.955 MHz
E:   26.965-27.405 MHz
F:   27.415-27.855 MHz
G:   27.865-28.305 MHz
H:   28.315-28.755 MHz
Channels / tuning steps:320 (8*40)
Mode:AM / FM / SSB / CW
Frequency control:PLL
Frequency stability:?%
Clarifier or Delta tune:Coarse: ±? KHz
Fine: ±? Hz
Power supply:Mains: 100-240 VAC (3-pin IEC C14 connector)
or 13.8 VDC
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:PA.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power: AM: 4 W
FM: 12 W
SSB: 12 W (PEP)
CW: 12 W
Modulation system:
FM deviation (Factory set):±? KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:China, 2005-200x (Discontinued)
Main PCB:
Sub PCBs:
Additional info:
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -

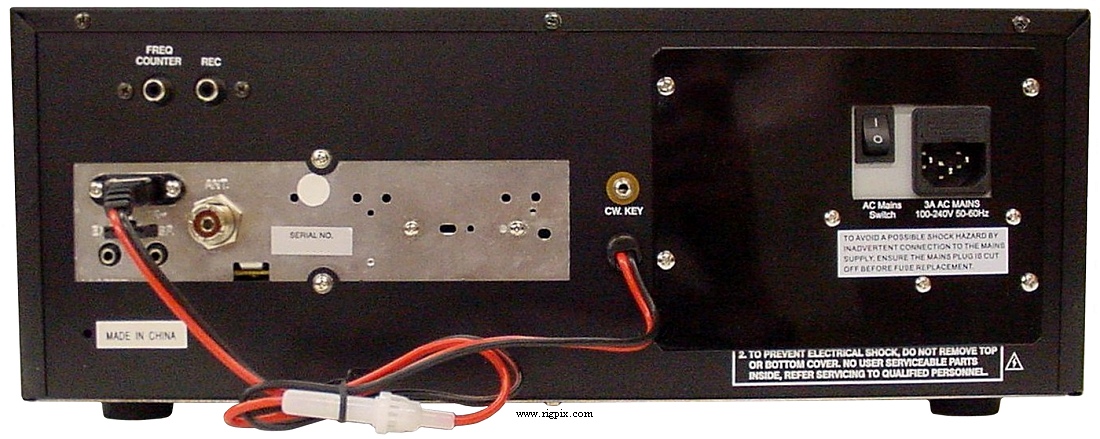

A rear picture of Magnum S-3200B
