Lafayette Telsat SSB-75 (99-33052W)

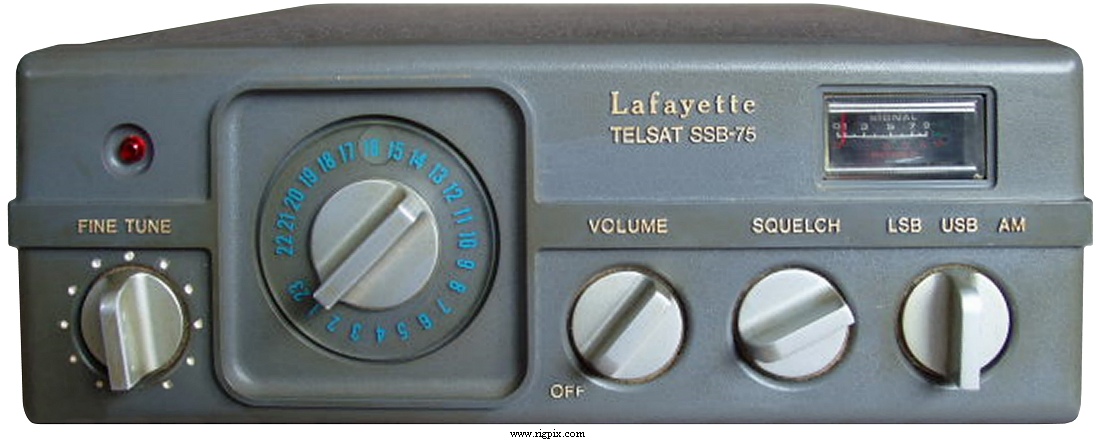

A picture of Lafayette Telsat SSB-75 (99-33052W)


Type:Citizen band transceiver
Frequency range:26.965-27.255 MHz
Channels / tuning steps:23
Mode:AM / SSB
Frequency control:XTAL-matrix
Frequency stability:? ppm
Clarifier or Delta tune:? Hz "Fine tune"
Power supply:12.6 VDC (3-pin connector)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):202*70*244 mm (7.94*2.75*9.62")
Weight:? Kg (? lb)
Other features:"Range boost".

Receiver system: Single conversion superheterodyne
IF: 11.275 MHz
Sensitivity: AM: 1 uV (10 dB S/N)
SSB: 0.25 uV (10 dB S/N)
Selectivity:20 KHz (-90 dB)
Image rejection:
AF output power / speaker:3 W at ?% distortion / ? ohm
External speaker connector:3.5 mm

RF output power:AM: 4 W
SSB: 12 W (PEP)
Modulation system:
FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 5-pin DIN (180)
Microphone input level:? mV

Manufactured:Japan, 197x-197x (Discontinued)
Main PCB:
Sub PCBs:
Additional info: New price 1976 in the US: $249.95
Se also Unimetrics Stingray 11
Related documents:
Sams Photofact #:CB-96 (September 1976)
Options / Accessories:
- -
A rear picture of Lafayette Telsat SSB-75 (99-33052W)
