| GENERAL |

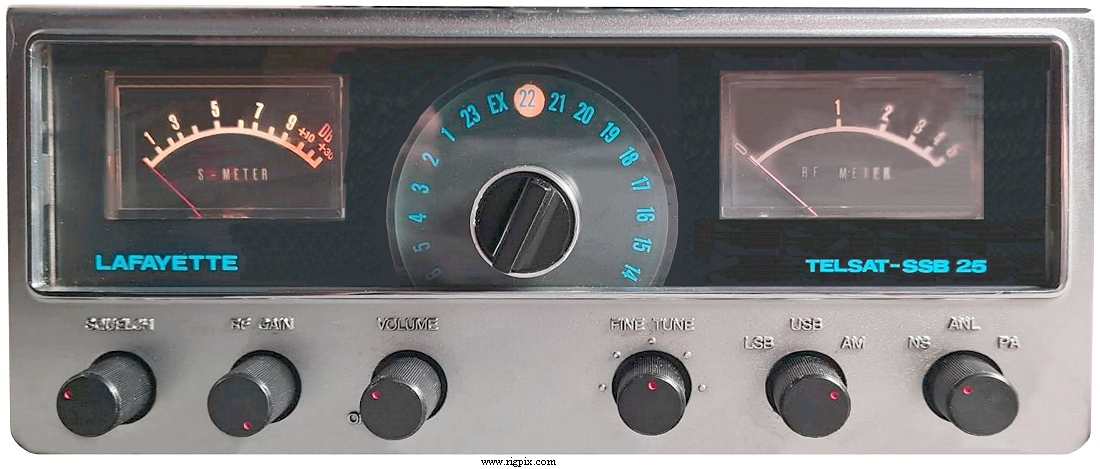

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM / SSB |
| Frequency control: | XTAL matrix |
| Frequency stability: | Max ? ppm |
| Clarifier or Delta tune: | ±2 KHz "Fine tune" |
| Power supply: | Mains: 117 VAC
or 12.6 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A @ 12.6 VDC |

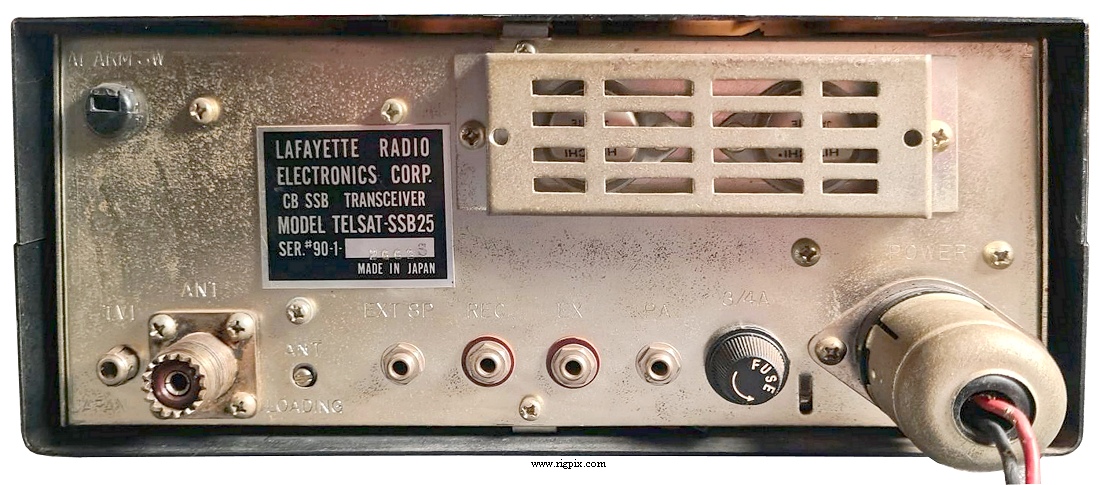

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 241*95*286 mm (9.5*3.75*11.25") |
| Weight: | ? Kg (? lb) |
| Other features: | PA. ANL/NB. "Range boost". Theft alarm function. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB)
IF: 11.275 MHz
Double conversion superheterodyne (AM)
1st IF: 11.275 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 0.5 uV (10 dB S/N)
SSB: 0.15 uV (10 dB S/N)
|
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
SSB: ~8 W PEP (15 W PEP input)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin "Y" jack |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1970-1972 (Discontinued) |
| Main PCB: | EPO-534 by Cybernet Electronics Corporation |
| Sub PCBs: |
EPO-538 - PSU board
EPO-539 - AGC board
|
| Additional info: |
New price 1971 in the US: $299.95
New price 1972 in the US: $326.95
|
| Related documents: |
Service manual (4.3 MB)
|
| Sams Photofact #: | CB-37 (December 1971) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
