| GENERAL |

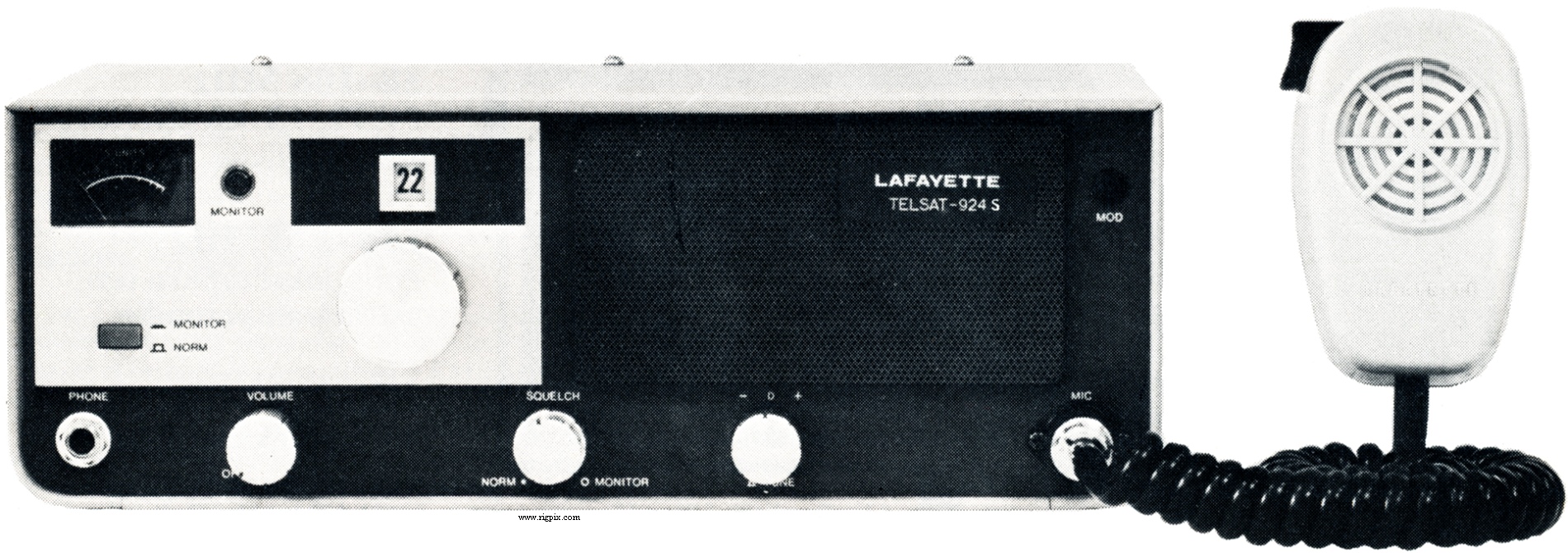

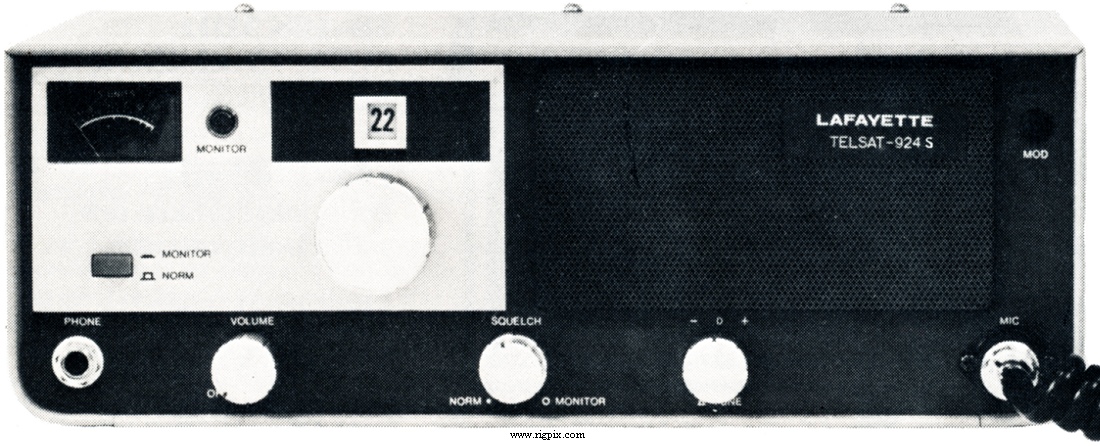

| Type: | Citizen band transceiver |
| Frequency range: |
Sweden
26.965-27.225 MHz
|
| Channels / tuning steps: | 23 (1-22 + 11A) |
| Mode: | AM |
| Frequency control: | XTAL matrix
One XTAL for the monitor receiver |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | ±1.5 KHz |
| Power supply: | Mains: 220 VAC
or 11.5-14.5 VDC |
| Current drain / power consumption: | RX: ? mA @ 12 VDC
TX: Max 950 mA @ 12 VDC |
| Antenna impedance / connector: | 50 ohm (30-100 ohm) / SO-239 |
| Dimensions (W*H*D): | 285*110*205 mm (11.22*4.33*8.07") |
| Weight: | 3 Kg (6.61 lb) |
| Other features: |
PA. "Range boost". External selcall jack.
A second independent one channel monitor receiver.
Individual squelch for each receiver.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (Main RX)
1st IF: 11.260-11.310 MHz
2nd IF: 455 KHz
Single conversion superheterodyne (Monitor RX)
IF: 435 KHz
|
| Sensitivity: | 0.7 uV (No S/N reference) |
| Squelch sensitivity: | |
| Selectivity: | 12 KHz (-6 dB)
16 KHz (-45 dB) |
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Less than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin "Y" jack |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1972-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price, march 1972 in Sweden: SEK 1676:50
|
| Related documents: | |
| Market(s) / Approval(s): |
Sweden
Televerket
|
| Sams Photofact #: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
