Lafayette Missouri "The lifesaver"

A picture of Lafayette Missouri ''The lifesaver''

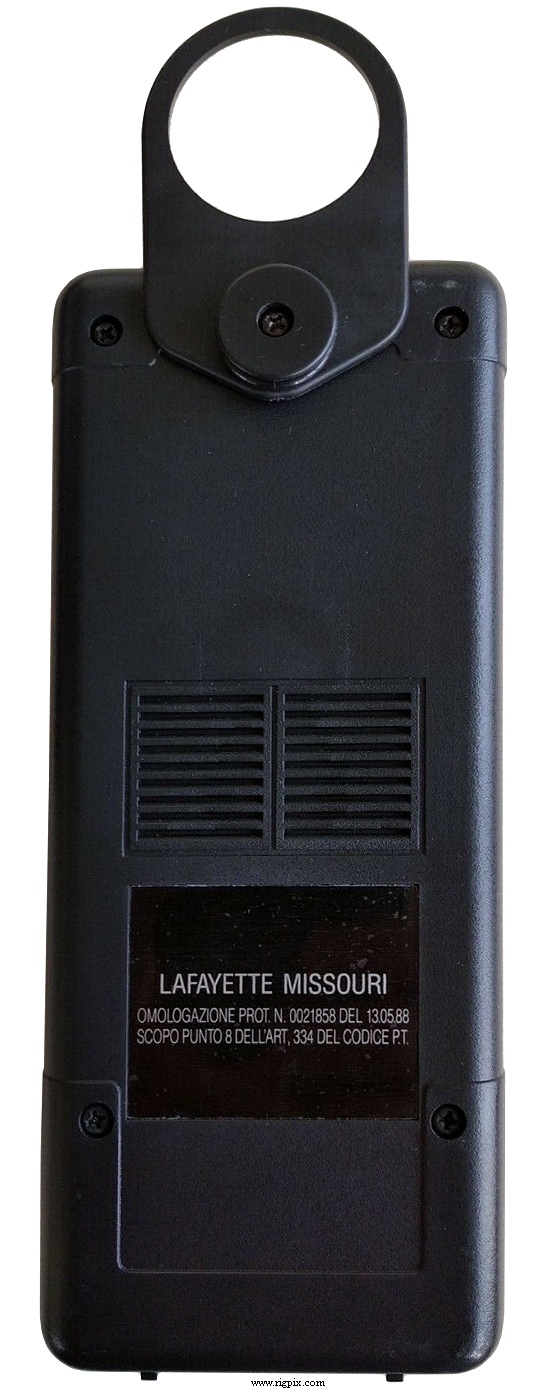

A rear picture of Lafayette Missouri ''The lifesaver''

SPECIFICATIONS

GENERAL
Type:Citizen band emergency transceiver
Frequency range:26.965-27.405 MHz
Channels / tuning steps:40
Mode:AM
Frequency control:PLL
Frequency stability:±?%
Clarifier or Delta tune:No
Power supply:12-14 VDC
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / ?
Dimensions (W*H*D):83*195*45 mm (3.27*7.68*1.77")
Weight:? g (? lb)
Other features:




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:1 uV (10 dB S/N)
Selectivity:60 dB (Adjacent channel)
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:~3.5 W (5 W input)
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:- / Internal only
Microphone input level:-




MISCELLANEOUS
Manufactured:Korea, 198x-198x (Discontinued)
Main PCB:
Sub PCBs:
Additional info:
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -
A picture of Lafayette Missouri ''The lifesaver'' kit
