Lafayette HB-940 (99-33599W)

A picture of Lafayette HB-940 (99-33599W)

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.405 MHz
Channels / tuning steps:40
Mode:AM
Frequency control:PLL (PLL02A)
Frequency stability:? ppm
Clarifier or Delta tune:±? KHz
Power supply:13.8 VDC (3-pin connector)
Current drain / power consumption:RX: ? A
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):179*63*216 mm (7.05*2.5*8.5")
Weight:1.76 Kg (3.88 lb)
Other features:PA. NB/ANL. SWR-meter. Tone switch. Delta tune. "Range boost".




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:0.7 uV (10 dB S/N)
Selectivity:10 KHz (-50 dB)
Image rejection:
AF output power / speaker:3 W at ?% distortion / 8 ohm
External speaker connector:TS jack (3.5 mm)




TRANSMITTER SECTION
RF output power:4 W
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:700 ohm / 5-pin DIN (180°)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 1976-197x (Discontinued)
Main PCB:PTBM049AOX by Cybernet Electronics Corporation
Sub PCBs:
Additional info:New price 1979 in the US: $139.99
Related documents: PLL: PLL02A
Sams Photofact #:CB-169 (February 1978)
Modifications and fixes:
Reviews:
Options / Accessories:
- -

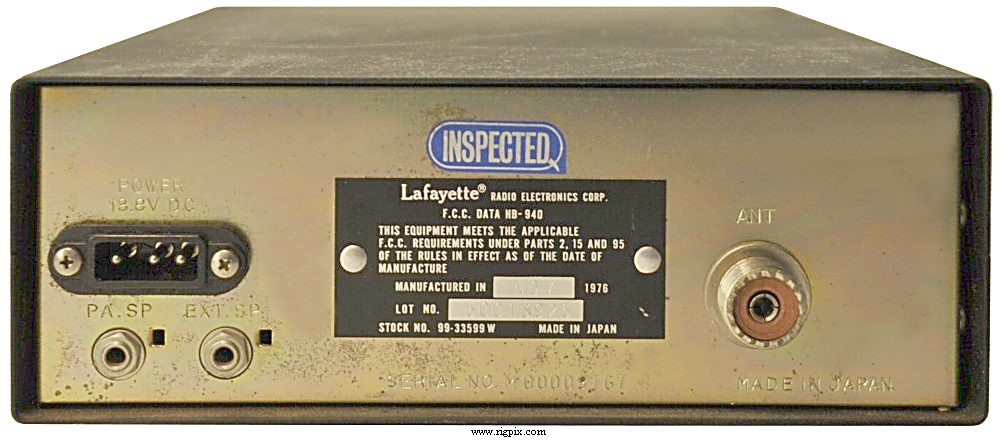

A rear picture of Lafayette HB-940 (99-33599W)
