| GENERAL |

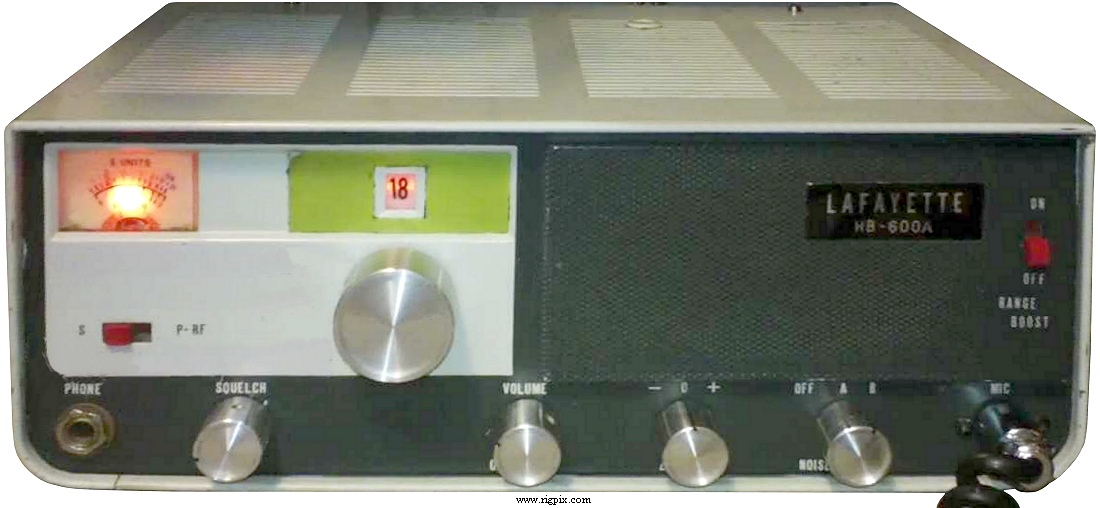

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 + 2 |
| Mode: | AM |
| Frequency control: | 1-23: XTAL matrix
2 XTAL's per channel for A and B |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | ±2.5 KHz |
| Power supply: | Mains: 105-120 VAC
or 11.5-14.5 VDC |
| Current drain / power consumption: | RX: 150-450 mA @ 13.8 VDC
TX: Max 1 A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 300*110*202 mm (11.81*4.31*7.94") |
| Weight: | 3.86 Kg (8.5 lb) |
| Other features: | PA. Noise limiter. Range boost. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 6.2 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 6 KHz (-6 dB) |
| Image rejection: | 40 dB |
| AF output power / speaker: | 4 W at ?% distortion / ? ohm |
| External speaker connector: | 16-32 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male "Y" jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1967-1968 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 1967 in the US: $219.95
New price 1968 in the US: $219.95
New price 1969 in the US: $219.95
|
| Related documents: | |
| Market(s) / Approval(s): |
USA
FCC: Type accepted, part 91
|
| Sams Photofact #: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
