| GENERAL |

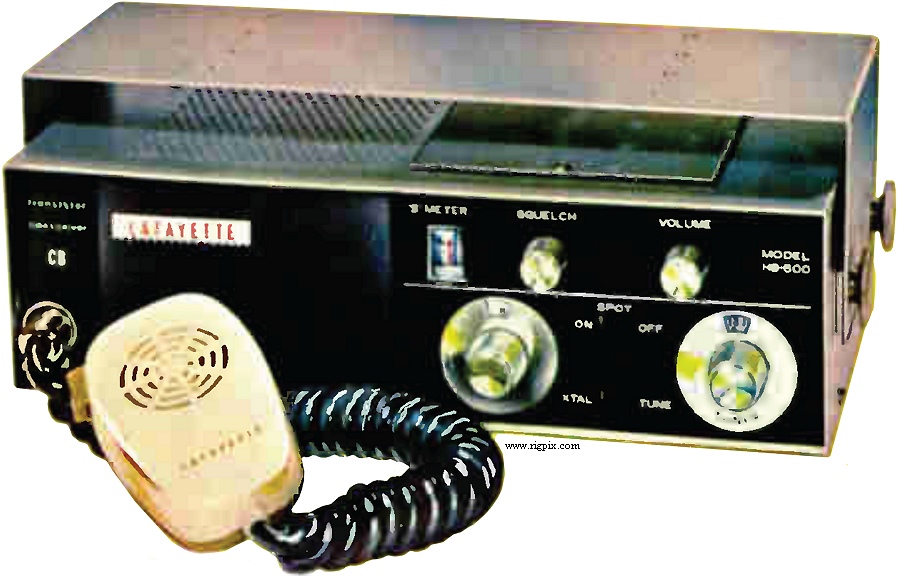

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 12 for RX/TX and 23 for RX |
| Mode: | AM |
| Frequency control: | XTAL for 12 RX/TX channels and VFO for 23 RX channels |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12 VDC |
| Current drain / power consumption: | RX: 350 mA
TX: 850 mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 290*86*170 mm (11.4*3.4*6.7") |
| Weight: | ? Kg (? lb) |
| Other features: | Spot switch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 50 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 2.7 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin ("Y" jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1964-196x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
100% solid state transceiver.
New price 1964 in the US: $139.50
|
| Related documents: | |
| Market(s) / Approval(s): |
USA
FCC
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
HB-501
|
Matching AC power supply
|
|
