| GENERAL |

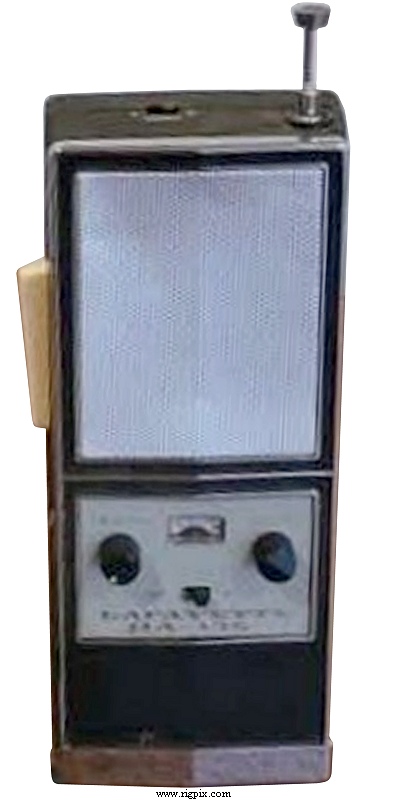

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 2 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 9.6-12 VDC (Eight R6 / AA alkaline or NiCd batteries) |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: |
Fixed telescopic whip
or 50 ohm / ?
|
| Dimensions (W*H*D): | 95*232*49 mm (3.75*9.12*1.94") |
| Weight: | ? g (? lb) |
| Other features: | RF output and battery meter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~800 mW (1.35 W input) |
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / Internal only |
| Microphone input level: | - |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1965-1966 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price, early 1966 in the US: $67.95
New price, late 1966 in the US: $59.95
|
| Related documents: | |
| Known markets and approvals: |
USA
FCC: Part 95 compliant
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
