| GENERAL |
| Type: | Citizen band emergency transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (LC7130 or LC7131) |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12-14 VDC (Barrel connector) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / Phono (RCA)
or threaded flex antenna |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | - / Internal only |
| Microphone input level: | - |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Korea, 1982-198x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |

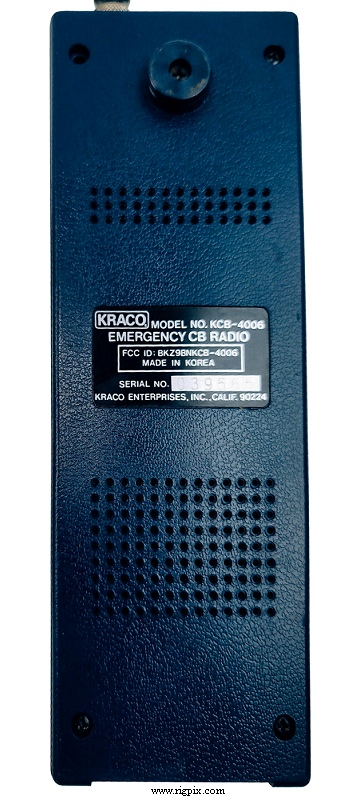

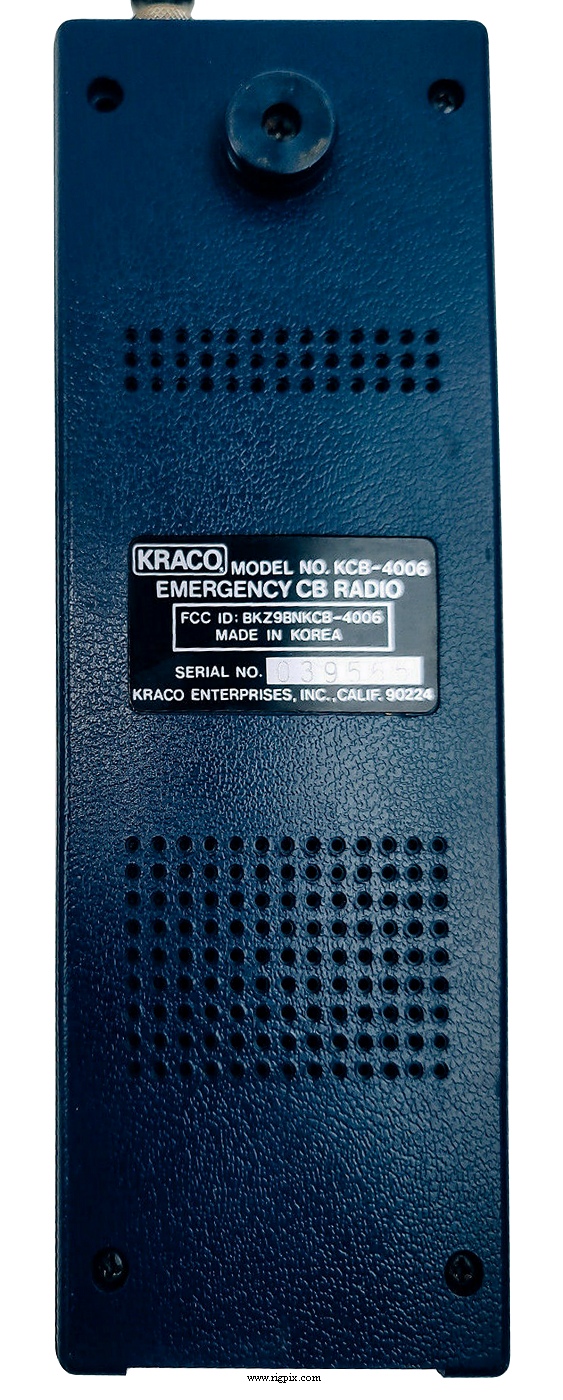

| Additional info: | FCC ID: BKZ9BNKCB-4006 |
| Related documents: |
Schematic diagram (541 KB)
AF amplifier: TDA2003
PLL: LC7130 or LC7131
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
