Kraco KB-4045

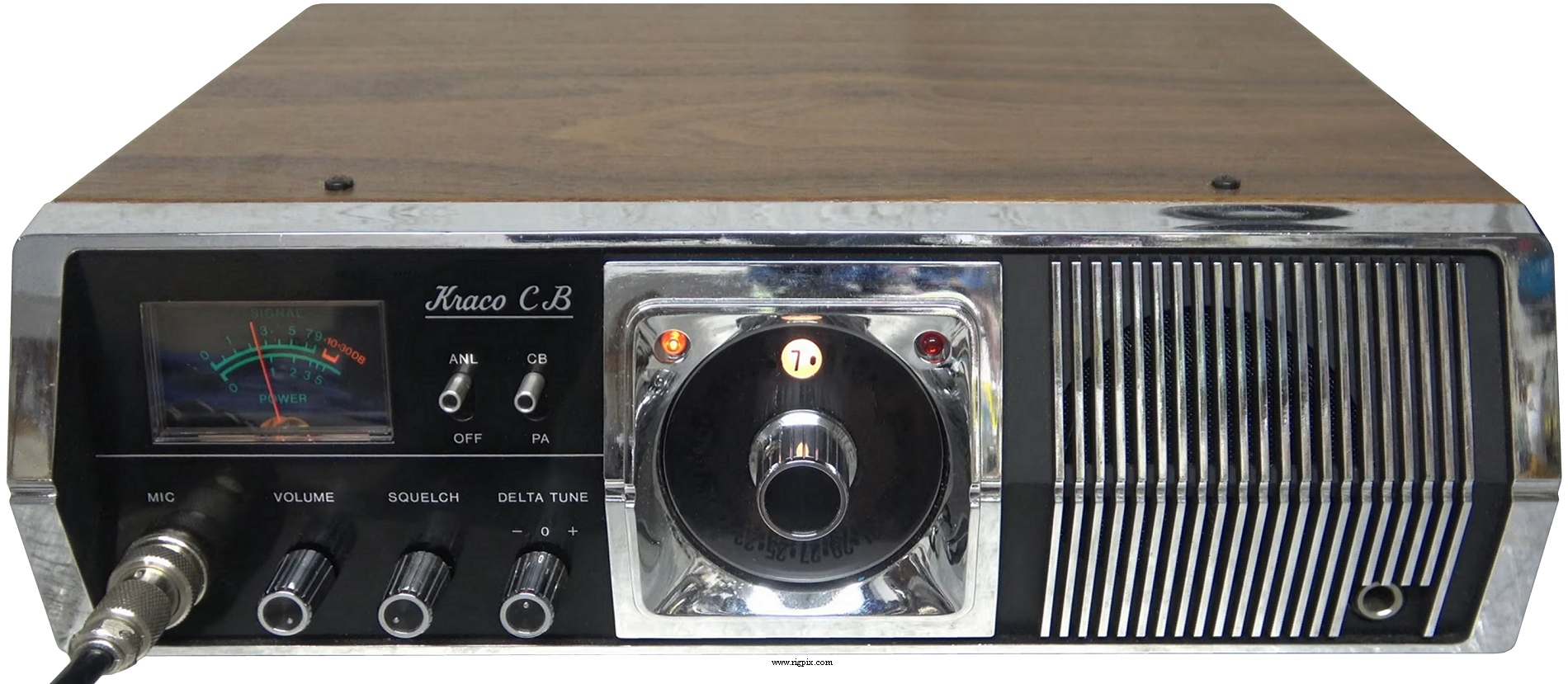

A picture of  Kraco KB-4045

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.405 MHz
Channels / tuning steps:40
Mode:AM
Frequency control:PLL
Frequency stability:?%
Clarifier or Delta tune:? KHz
Power supply:Mains: 105-120 VAC (2-pin connector)
or 13.8 VDC (3-pin connector)
Current drain / power consumption:RX: ? mA
TX: Less than 45 W @ mains
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:PA. ANL.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:4 W
Modulation system:
FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:197x-197x (Discontinued)
Main PCB:
Sub PCBs:
Additional info:
Related documents:
Sams Photofact #:CB-244 (January 1979)
Modifications and fixes:
Reviews:
Options / Accessories:
- -

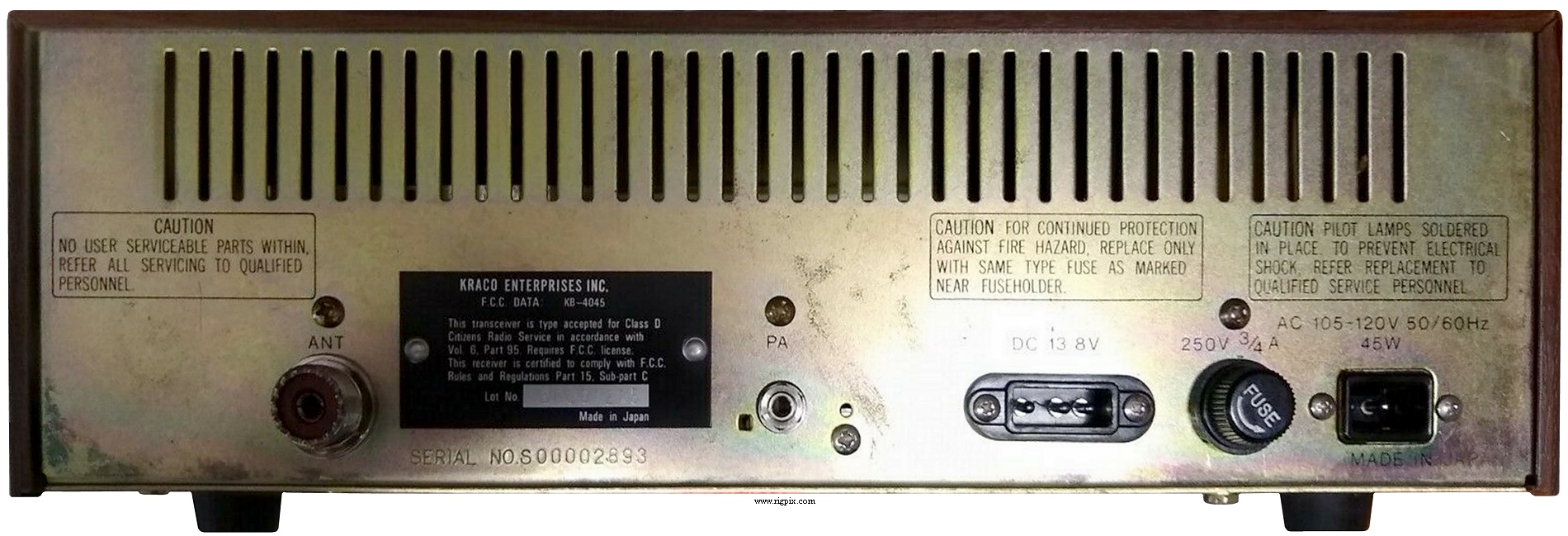

A rear picture of  Kraco KB-4045
