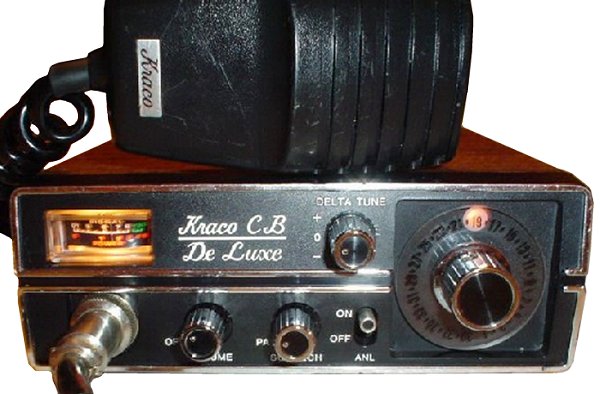

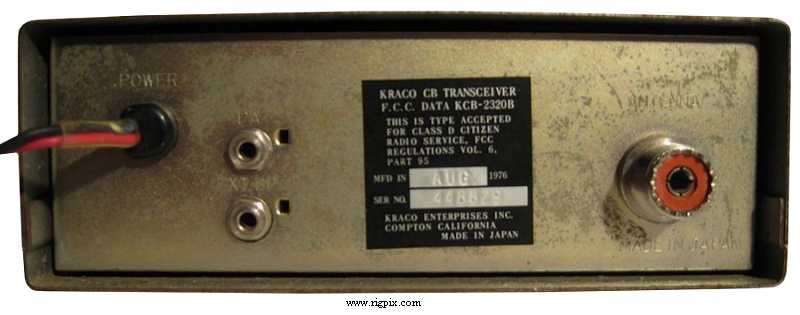

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | ? ppm |
| Clarifier or Delta tune: | ±1 KHz |
| Power supply: | 13.8 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 162*57*207 mm (6.38*2.24*8.15") |
| Weight: | 1.36 Kg (3 lb) |
| Other features: | PA. ANL. Delta tune. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: Murata CFU455H3
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / 8 ohm |
| External speaker connector: | TS jack (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1976-197x (Discontinued) |
| Main PCB: | PTBM039AOX by Cybernet Electronics Corporation |
| Sub PCBs: | |
| Additional info: | |
| Related documents: | PLL: PLL02A |
| Sams Photofact #: | CB-153 (November 1977) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
