| GENERAL |

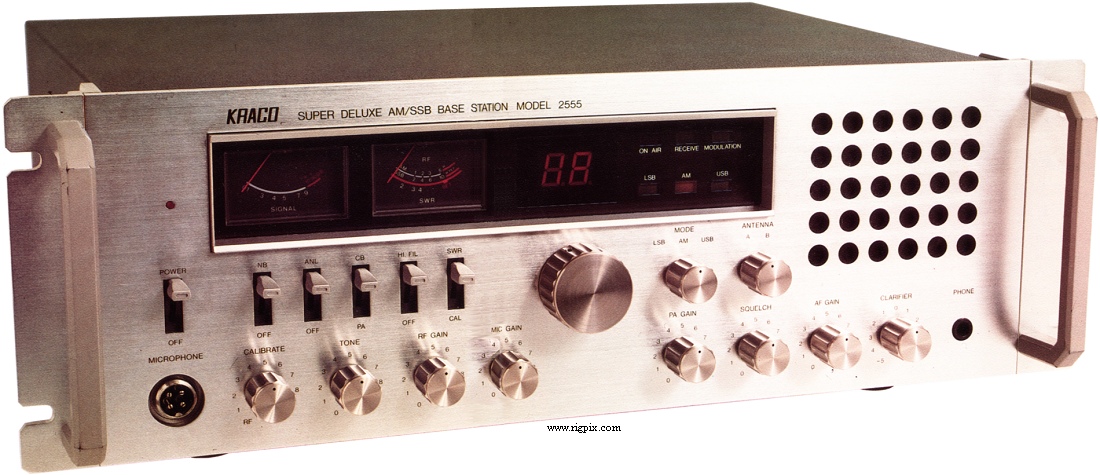

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: |
25 (1-24 + 11A)
According to swedish law at the time, SSB was only allowed on ch 24, and
therefore, switching this radio to LSB or USB automatically changed the
channel to 24.
|
| Mode: | AM / SSB |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | ±0.003% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | ±800 Hz |
| Power supply: | Mains: 220 VAC (Fixed power cord) |
| Current drain / power consumption: | RX: ? W
TX: Max 75 W |
| Antenna impedance / connector: | 50 ohm / Two SO-239 (Switchable) |
| Dimensions (W*H*D): | 405*150*300 mm (15.95*5.9*11.81"), without rack mounting handles |
| Weight: | 8.5 Kg (18.74 lb) |
| Other features: | ANL/NB. PA. SWR meter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB)
IF: 10.695 MHz
Double conversion superheterodyne (AM)
1st IF: 10.695MHz
2nd IF:455 KHz
|
| Sensitivity: |
AM: 1 uV (10 dB S/N)
SSB: 0.3 uV(10 dB S/N)
|
| Squelch sensitivity: | Less than 0.7 uV (Threshold) |
| Selectivity: |
AM
4 KHz (-5 dB)
10 KHz (-50 dB)
SSB
2 KHz (-5 dB)
|
| Image rejection: | >50 dB |
| AF output power / speaker: | 3 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
SSB: 12 W (PEP)
|
| Modulation system: |
AM: High and low level class B amplitude modulation
SSB: Double balanced modulation
|
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1980-1981 (Discontinued) |
| Main PCB: | PTBM058COX by Cybernet Electronics Corporation |
| Sub PCBs: |
PTLD045COX - LED display and indicators board
PTPW007COX - AVR/PSU board
PTSR017COX - SWR and antenna A/B relay board
PTSW072COX - Lever switches board
PTSW083COX - Channel selector board
PTZZ024AOX - Selcall relay board
|
| Additional info: | Same as Kraco 2555FM but without FM |
| Related documents: |
User/service manual (13.6 MB)
PLL: PLL02A
|
| Market(s) / Approval(s): |
Sweden
Televerket
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
