| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 24 (1-23 + 11A) |
| Mode: | AM / FM |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | Mains: 220 VAC (Fixed power cord) |
| Current drain / power consumption: | RX: ? W
TX: ? W |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 290*92*223 mm (11.42*3.62*8.78") |
| Weight: | 4.25 Kg (9.37 lb) |

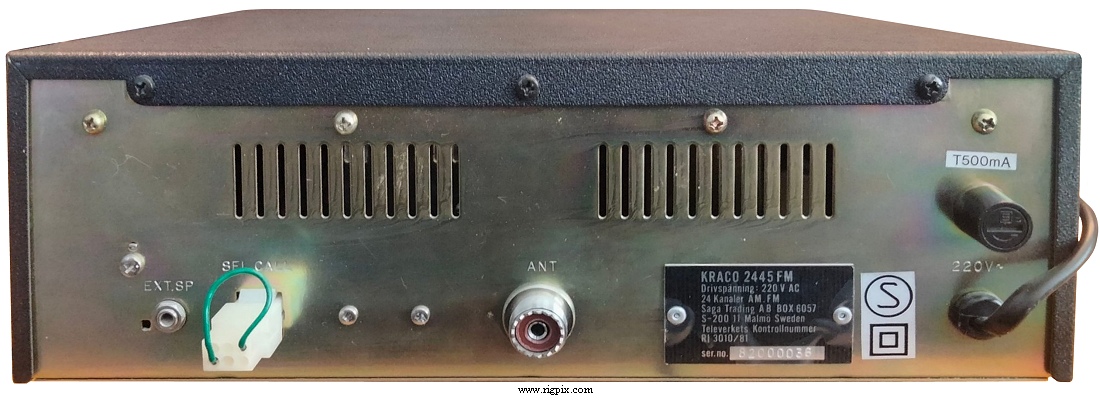

| Other features: | Selcall jack. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 3.5 W |
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1982-198x (Discontinued) |
| Main PCB: | PTBM094COX by Cybernet Electronics Corporation |
| Sub PCBs: | |
| Additional info: | New price 1983 in Sweden: SEK 1915:- |
| Related documents: | PLL: PLL02A |
| Market(s) / Approval(s): |
Sweden
Televerket: RI 3010/81
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
