| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 24 (1-23 + 11A) |
| Mode: | AM |
| Frequency control: | PLL (CCI3002) |
| Frequency stability: | Max ? ppm |
| Clarifier or Delta tune: | ±? KHz "Tune" |

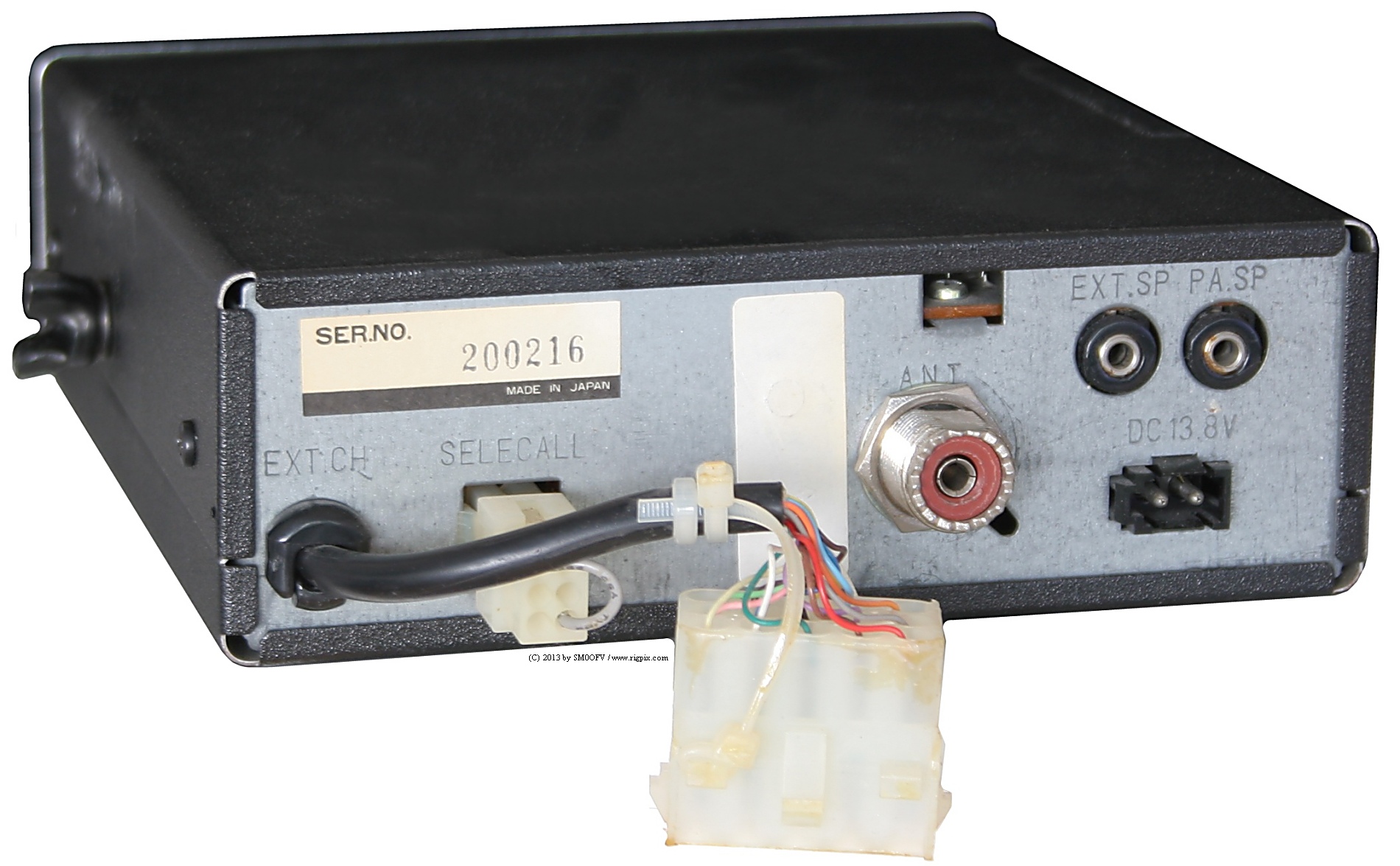

| Power supply: | 13.8 VDC (2-pin connector) |
| Current drain / power consumption: | RX: Max 300 mA
TX: Max 900 mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 157*55*186 mm (6.18*2.16*7.32") |
| Weight: | 1.42 Kg (3.13 lb) |
| Other features: | PA. AWI. ANL. Optional external channel display and selcall. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: Murata CFW455HT
|
| Sensitivity: | 0.5 uV (10 dB S/N) |
| Selectivity: | 5 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS jack (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1978-197x (Discontinued) |
| Main PCB: |
Single sided with through hole components
|
| Sub PCBs: | |
| Additional info: | New price 1979 in Sweden: 965:- SEK |
| Related documents: |
PLL: CCI3002
RF final: 2SC2166
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | Radio & Television: #6/7 1979 |
| Options / Accessories: |
|
?
|
External channel display
|
|
