| GENERAL |

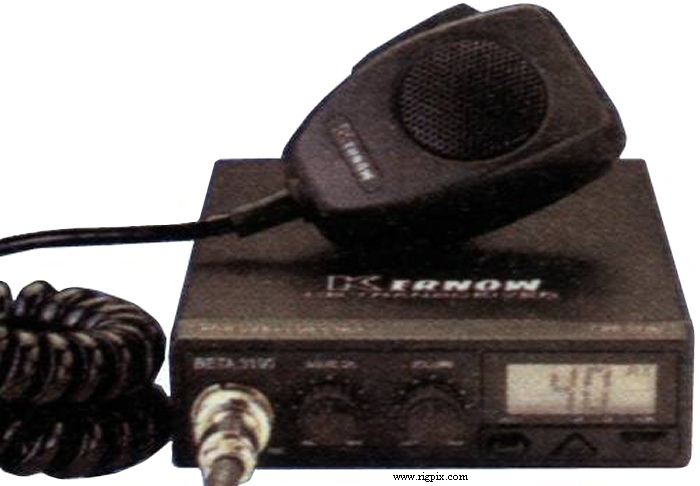

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 (CEPT)
27.60125-27.99125 MHz (UK CB 27/81) |
| Channels / tuning steps: | 40 (CEPT) + 40 (UK CB 27/81) |
| Mode: | FM |
| Frequency control: | PLL |
| Frequency stability: | ? ppm |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 129*38*165 mm (5.08*1.5*6.5") |
| Weight: | 750 g (1.65 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 199x-200x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | New price 2000 in UK: £ 69.95 |
| Related documents: | |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
