| GENERAL |

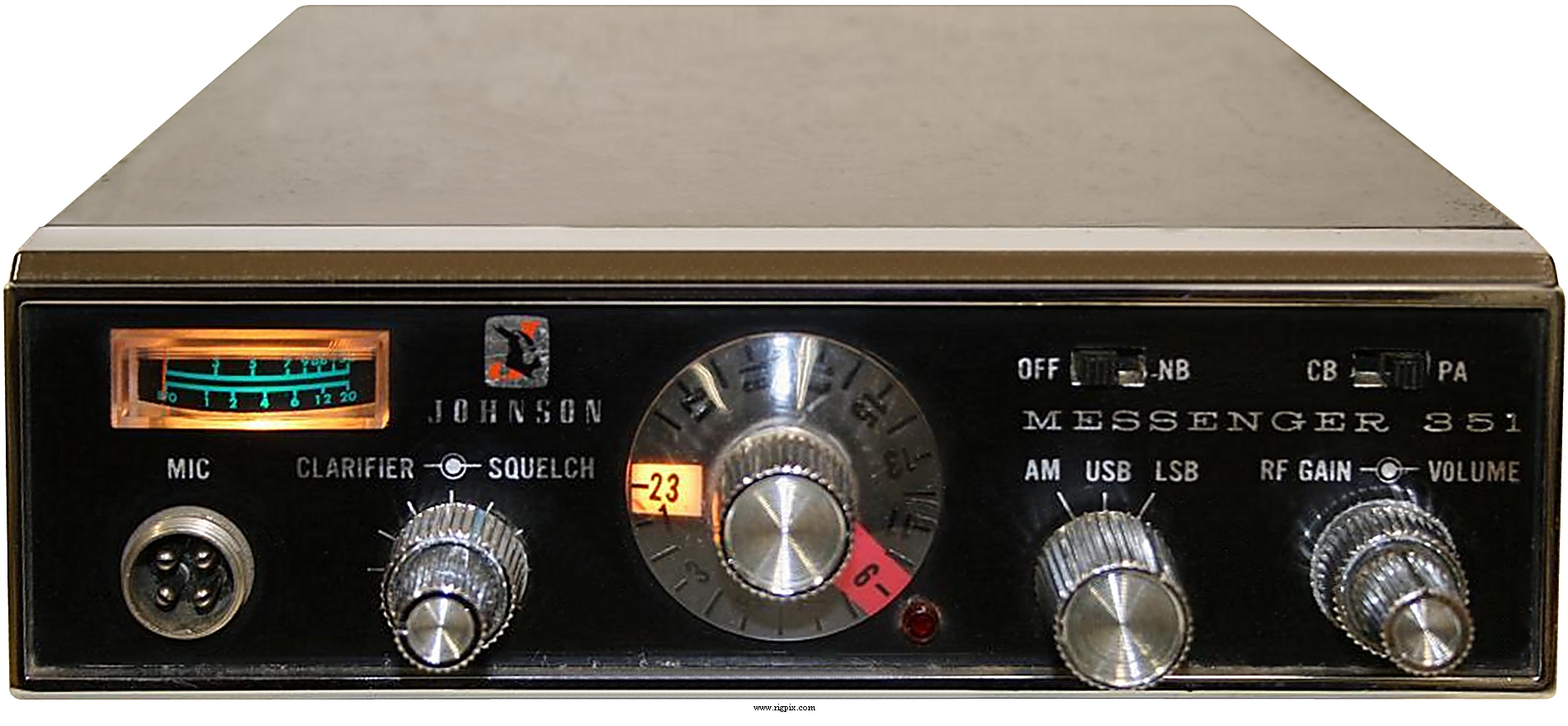

| Type: | Citizen band transceiver |
| Frequency range: | 26.954-27.255 MHz |
| Channels / tuning steps: | 23 (1-23) |
| Mode: | AM / SSB |
| Frequency control: | XTAL-matrix |
| Frequency stability: | ? ppm |
| Clarifier or Delta tune: | ±? Hz |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | PA. NB, |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | AM: 4 W
SSB: 12 W |
| Modulation system: | |
| FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 197x-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: | |
| Sams Photofact #: | CB-57 (September 1974) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
