| GENERAL |

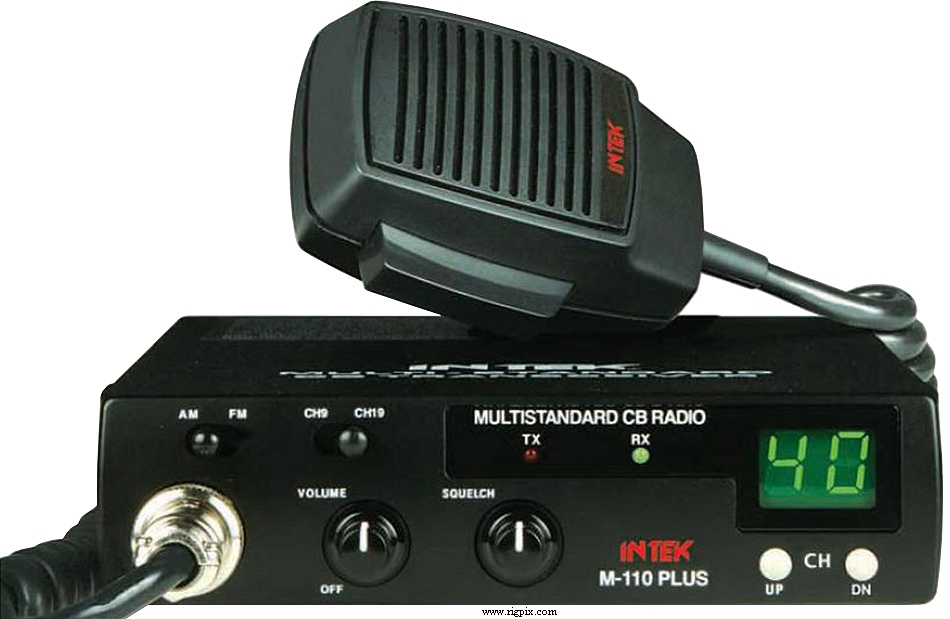

| Type: | Citizen band multinorm transceiver |
Frequency range
depending on bandplan: |
01 - 26.965-27.405 MHz (Italy and Spain)
02 - 26.855-26.955 / 26.965-27.265 MHz (Italy)
03 - 26.565-27.405 MHz (Germany)
04 - 26.965-27.405 MHz (Germany)
05 - 26.965-27.405 MHz (Europe/France)
06 - 26.965-27.405 MHz (CEPT/Europe)
07 - 26.965-27.405 / 27.60125-27.99125 MHz (United Kingdom)
08 - 26.960-27.400 MHz (Poland)
|
Channels / tuning steps
depending on bandplan: | 12+40, 12+80, 36, 40 or 80 |
Mode
depending on bandplan: | AM / FM or FM only |
| Frequency control: | PLL |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.2 VDC ±15% (Fixed power cord) |
| Current drain / power consumption: | RX: 350 mA (Squelched)
TX: 1.3 A (No modulation) |

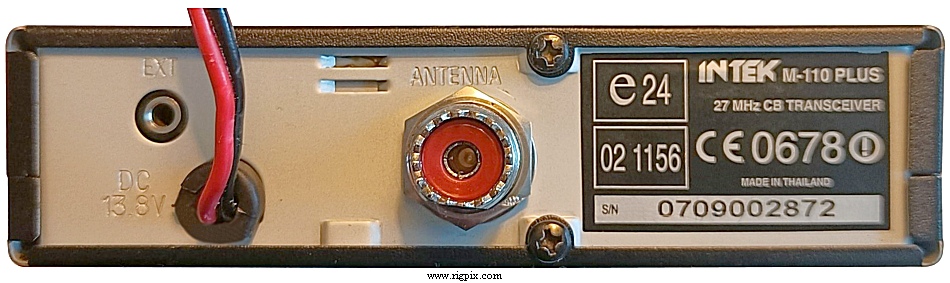

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 140*37*190 mm (5.51*1.46*7.48") |
| Weight: | 750 g (1.65 lb) |
| Other features: | Channel 9/19 switch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 0.5 uV (20 dB SINAD)
FM: 0.5 uV (20 dB SINAD)
|
| Squelch sensitivity: | |
| Selectivity: | 65 dB (Adjacent channel) |
| Image rejection: | 65 dB |
| AF output power / speaker: | 2.5 W at 10% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
RF output power
depending on bandplan: |
AM: 1 or 4 W
FM: 4 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±1.8 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2005-20xx (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (957 KB, English and Italian)
FM-IF: MC3361
AF amplifier: TDA2003
RF driver: 2SC2314
RF final: 2SC2078
|
| Known markets and approvals: |
Europe
Multinorm
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
