Intek H-520 Plus

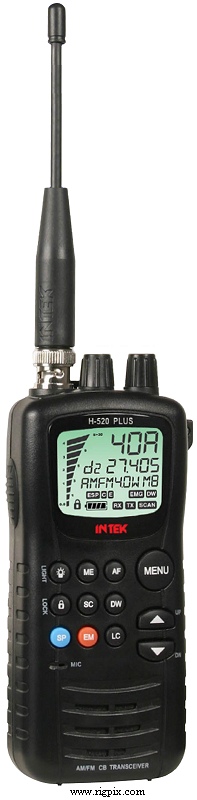

A picture of Intek H-520 Plus

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver, multinorm
Frequency range,
depending on setting:
CE, EU & E1:26.965-27.405 MHz
I2:26.965-26.865 MHz
DE & D2:27.005-27.135 & 26.565-27.405 MHz
UK:26.965-27.405 & 27.60125-27.99125 MHz
PL:26.960-27.400 MHz
PO:25.610-30.100 MHz (Mod required)
RU:25.615-30.105 MHz (Mod required)
Channels/tuning steps
depending on setting:
36, 40, 80 or 400
Mode:AM/FM
Frequency control:PLL
Frequency stability:?%
Power supply:7.2-9 VDC (6*R6/AA batteries)
or 12 VDC external (with car adapter)
Current drain/power consumption:RX: 70-300 mA
TX: Max 1.5 A
Antenna impedance/connector:50 ohm / BNC (SO-239 on pigtail with car adapter)
Dimensions (W*H*D):68*146*38 mm (2.68*5.75*1.5")
Weight:218 g (7.69 oz), without batteries and antenna
Other features:8 memories. Scanning. Dual watch. Instant ch 9/19.




RECEIVER SECTION
Receiver system:Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:AM: 0.7 uV (20 dB SINAD)
FM: 0.5 uV (20 dB SINAD)
Selectivity:
Image rejection:60 dB
AF output power/speaker:0.3 W at 8% distortion / 8 ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:Hi: 4 W
Mid: 1 W
Lo: 100 mW
Modulation system:
Max FM deviation:? KHz
Spurious emissions:Less than -? dB
Microphone impedance/connector:? ohm / ?-pin
Microphone input sensitivity:? mV




MISCELLANEOUS
Manufactured:2009-201x
Main PCB:
Additional info:New price 2013 in Sweden: SEK 1395:-
Related documents: User manual (2.7 MB, English and Italian)
Service manual (1.7 MB)
Sams Photofact #:
Modifications and fixes:
Reviews:
Options/Accessories:
- -

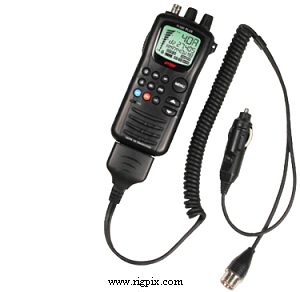

A picture of Intek H-520 Plus with car adapter
