Hy-Gain V (2795DX)

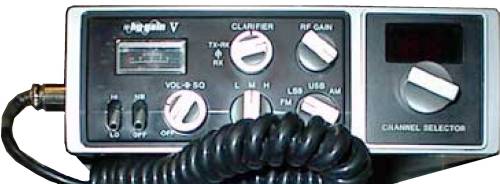

A picture of Hy-Gain V (2795DX)

SPECIFICATIONS

GENERAL
Type:Citizen band / "Freeband" / Export transceiver
Frequency range
depending on version:
26.965-28.305 MHz in three bands (Early version)
Low:   26.965-27.405 MHz
Mid:   27.415-27.855 MHz
High:   27.865-28.305 MHz
26.515-27.855 MHz in three bands (Later version)
Low:   26.515-26.955 MHz
Mid:   26.965-27.405 MHz
High:   27.415-27.855 MHz
Channels / tuning steps:120 (3*40)
Mode:AM / FM / SSB
Frequency control:PLL (PLL02A)
Frequency stability:±0.005%
Clarifier or Delta tune:TX+RX: ±? KHz
RX: ±? Hz
Power supply:13.8 VDC (Male 3-pin jack)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):180*55*240 mm (7.1*2.2*9.4")
Weight:2 Kg (4.4 lb)
Other features: NB. Hi-cut switch. External selcall option.
TX frequency counter jack (Later version only)




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (SSB)
IF: 10.695 MHz
Double conversion superheterodyne (AM/FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity: AM: 1 uV (10 dB S+N/N)
FM: 1 uV (20 dB S/N)
SSB: 0.5 uV (10 dB S+N/N)
Squelch sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:2 W at ?% distortion / 8 ohm
External speaker connector:TS "Minijack" (3.5 mm), 8 ohm




TRANSMITTER SECTION
RF output power: AM: 8-10 W
FM: 8-10 W
SSB: 12 W
Modulation system: AM: High level, class B, collector-modulated
SSB: Double-balanced with crystal lattice filter
Max FM deviation (Factory set):±2.5 KHz
Spurious emissions:Better than -60 dB
Microphone impedance / connector: Early version: ? ohm / 5-pin DIN (180°)
Later version: ? ohm / 4-pin (Male locking ring jack)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 197x-198x (Discontinued)
Main PCB:PTBM121D4X by Cybernet Electronics Corporation
Sub PCBs: PTLD043AOX - LED display board
PTOS011AOX - Crystal board
PTSW076AOX - Channel selector board
Additional info: The early version had a straight roger beep and the same nice mike as supplied
with the Hy-Gain V 2705. The later version had the well known "peewit" roger
beep and the ugly coffin mike.
Related documents: Schematic diagram (1.4 MB) Later version generic
PLL: PLL02A
Market / Approval: Export
No known approvals
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -
A rear picture of Hy-Gain V (2795DX), later version
