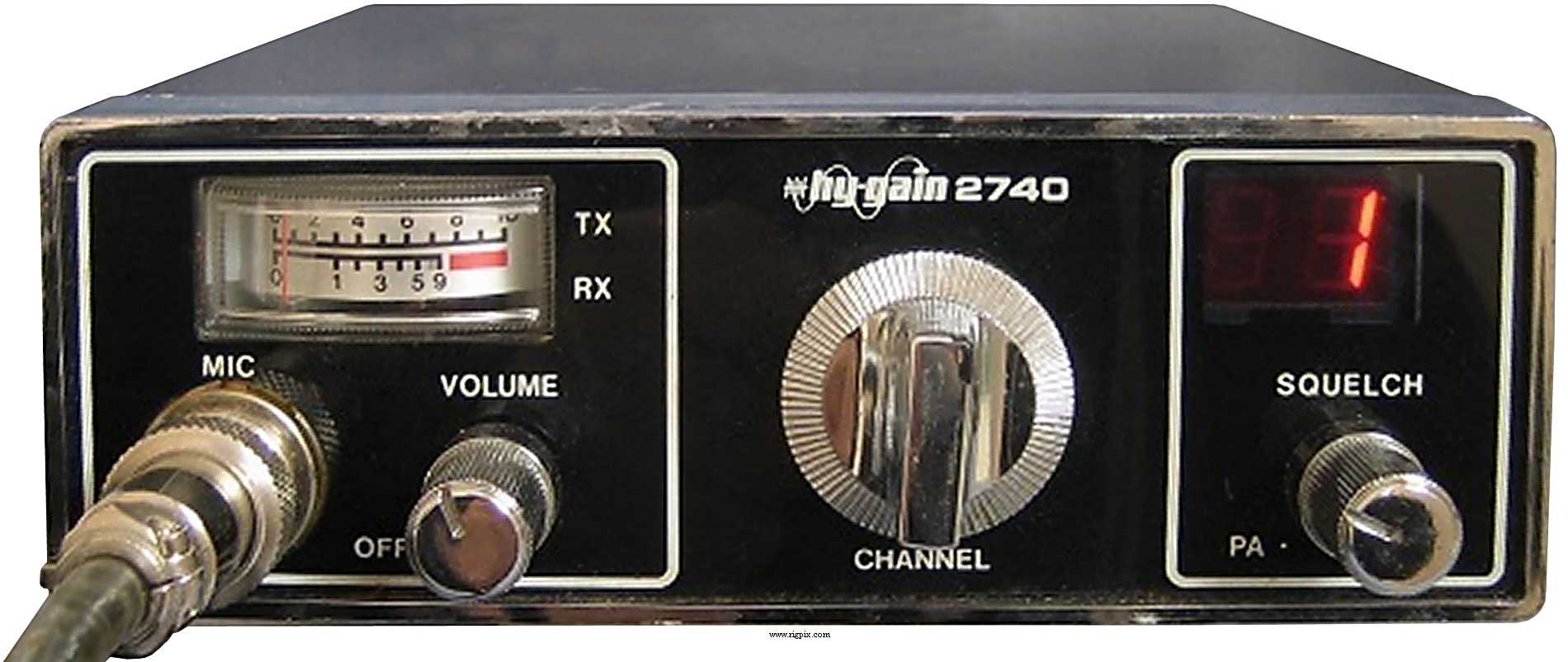

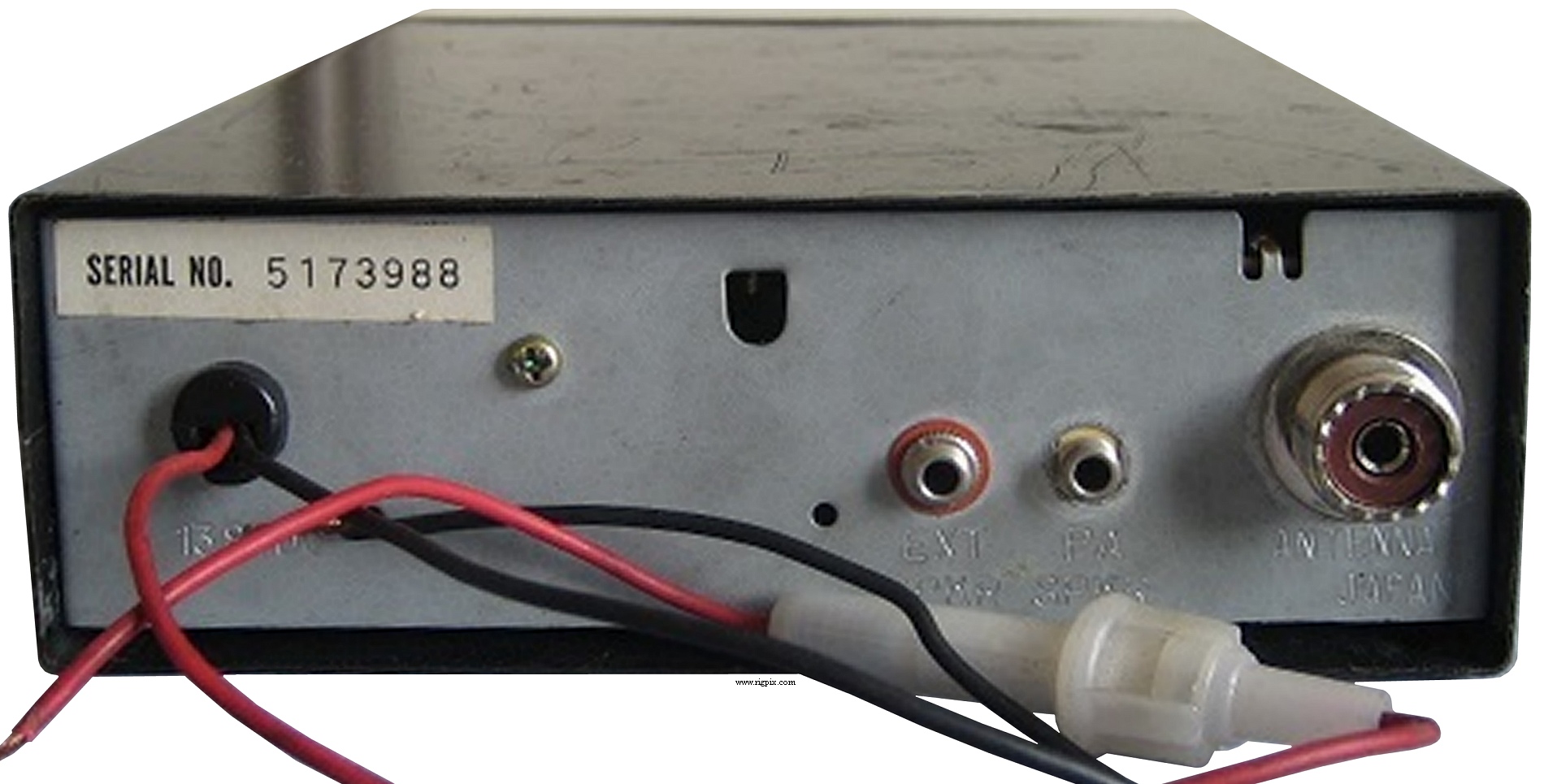

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (LC7120) |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 150*50*197 mm (5.91*1.97*7.76") |
| Weight: | 1.16 Kg (2.56 lb) |
| Other features: | PA. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: Murata CFU455H
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / 8 ohm |
| External speaker connector: | TS jack (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Main PCB: |
4023B by ?
Single sided with through-hole components
|
| Sub PCBs: | ? - LED channel display board |
| Additional info: | Also sold as Tristar 707 |
| Related documents: |
PLL: LC7120
AF amplifier: TA7205P
RF final: 2SC1306
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
