Hy-Gain 11 (1291)

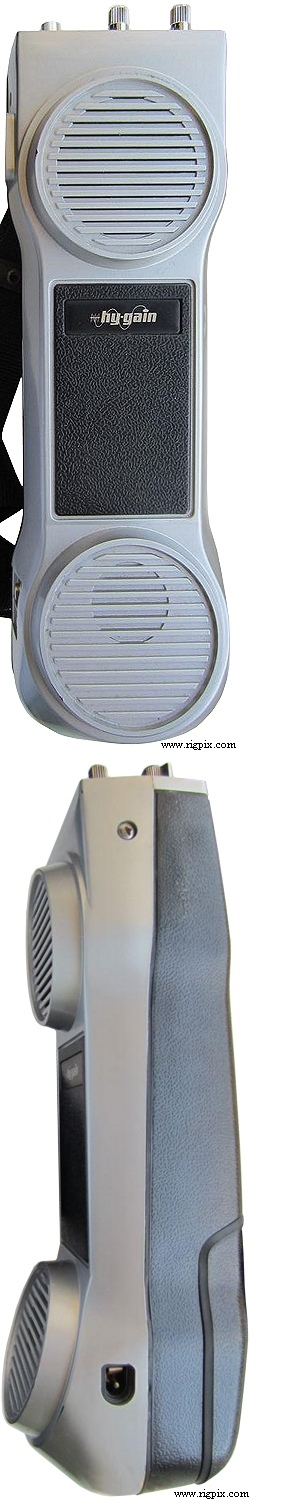

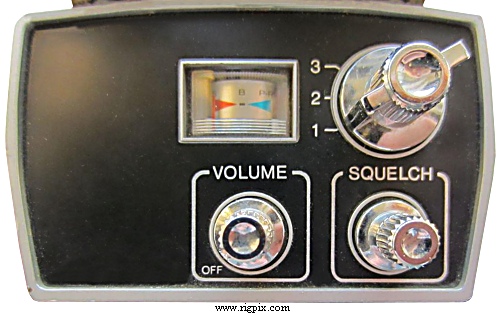

A picture of Hy-Gain 11 (1291) A picture of Hy-Gain 11 (1291)

SPECIFICATIONS

, without batteries
GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.255 MHz
Channels / tuning steps:3
Mode:AM
Frequency control:Two XTALs per channel
Frequency stability:±?%
Power supply:9-15 VDC (Battery pack)
or 9-15 VDC external (Barrel connector)
Current drain / power consumption:RX: ? mA
TX: ? mA
Antenna impedance / connector:- / Fixed telescopic whip
50 ohm / 3.5 mm
Dimensions (W*H*D):76*250*65 to 80 mm (2.99*9.84*2.56 to 3.15")
Weight:760 g (1.68 lb)
Other features:




RECEIVER SECTION
Receiver system: Single conversion superheterodyne
IF: 455 KHz - Ceramic filter: Murata CFU455H3
Sensitivity:1 uV (No reference)
Selectivity:
Image rejection:
AF output power / speaker:800 mW at ?% distortion / 8 ohm
External speaker connector:2.5 mm




TRANSMITTER SECTION
RF output power:~1 W (2 W input)
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:- / Internal only
Microphone input level:-




MISCELLANEOUS
Manufactured:Japan, 1976-197x (Discontinued)
Main PCB:PTBH019AOX by Cybernet Electronics Corporation
Sub PCBs:None
Additional info:
Related documents: Service manual (9 MB)
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -
