| GENERAL |

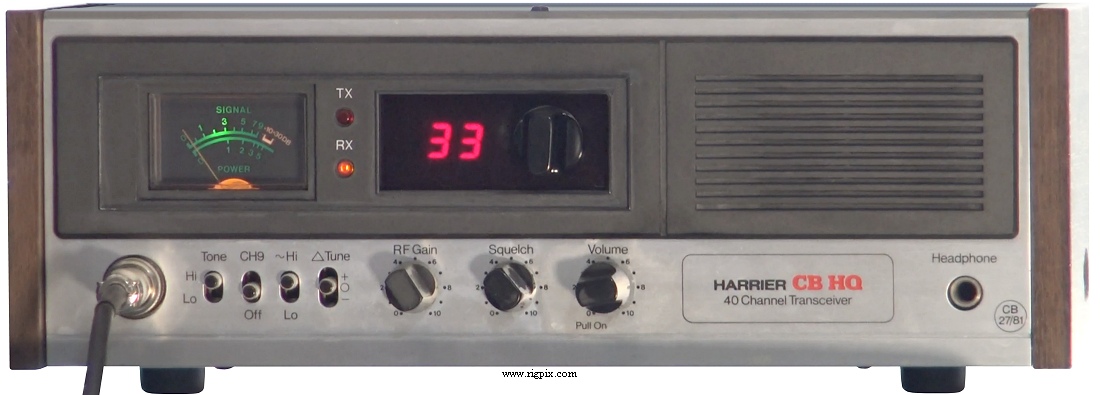

| Type: | Citizen band transceiver |
| Frequency range: | 27.60125-27.99125 MHz |
| Channels / tuning steps: | 40 (UK CB 27/81) |
| Mode: | FM |
| Frequency control: | PLL (LC7136 or LC7137) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | Mains: 240 VAC (Fixed power cord)
or 13.2 VDC (Male 2-pin jack) |
| Current drain / power consumption: | RX: ? W
TX: ? W |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | Tone hi-cut. Channel 9 switch. RF gain. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | Less than 0.5 uV (12 dB SINAD) |
| Squelch sensitivity: | Less than 0.5 uV (Threshold) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 1.5 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 4 W
Low: 400 mW
|
| Modulation system: | |
| Max AM modulation (Factory set): | No AM |
| Max FM deviation (Factory set): | ±1.5 KHz |
| Spurious emissions: | Less than 50 nW |
| Microphone impedance / connector: | ? ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1981-198x (Discontinued) |
| Main PCB: |
PTBM134AOX by Cybernet Electronics Corporation
|
| Sub PCBs: |
EPO-0612B-01 - AVR/PSU board
And others...
|
| Additional info: | |
| Related documents: |
PLL: LC7136 or LC7137
FM-IF: AN240
AF amplifier: TA7205P
|
| Known markets and approvals: |
United Kingdom
CB 27/81
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
