Handic Micman X

A picture of Handic Micman X
A top view picture of Handic Micman X

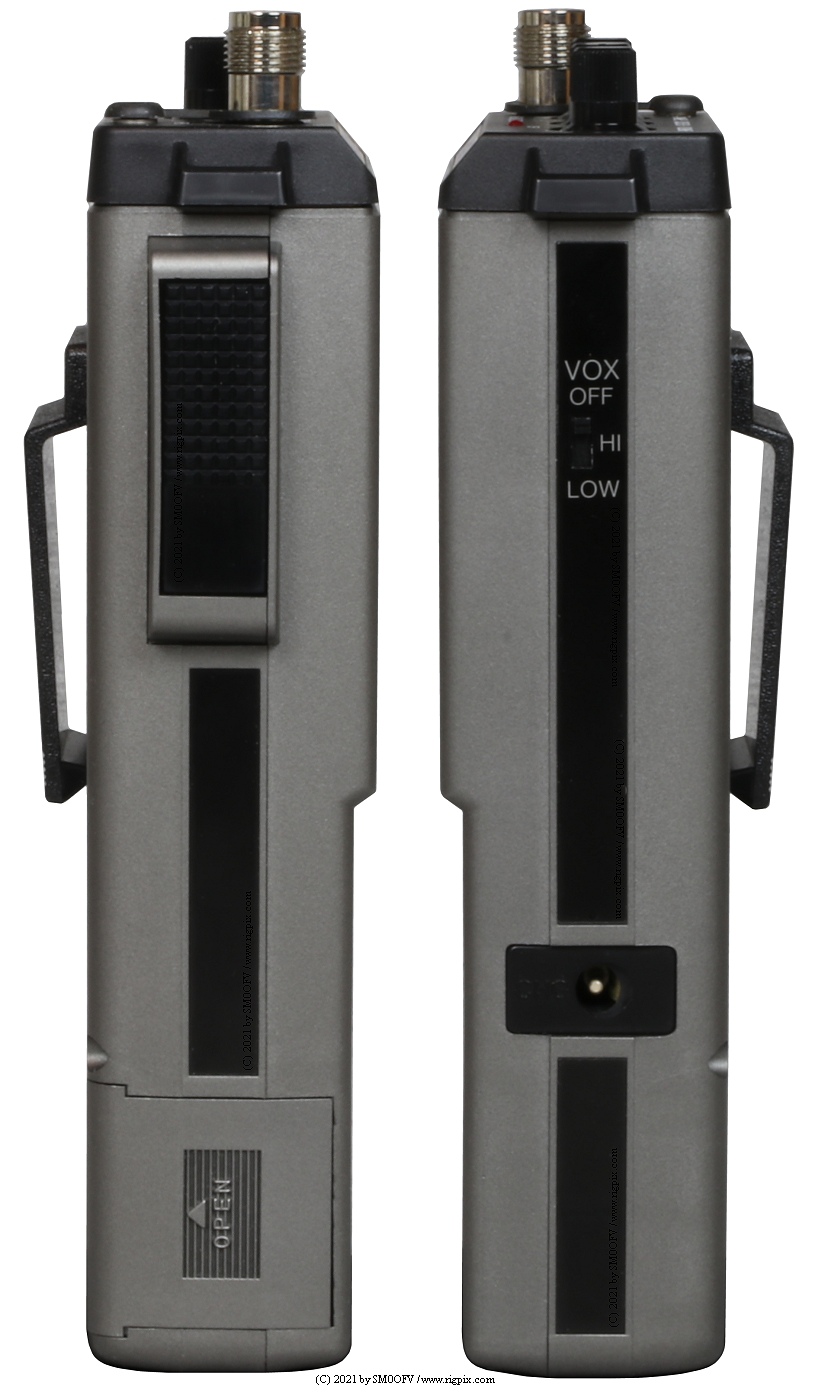

Side pictures of Handic Micman X

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.600-31.700 MHz (Depending on alignment)
Channels/tuning steps:6
Mode:FM
Frequency control:One XTAL per channel (Yes, one!)
Frequency stability:?%
Power supply: 6 VDC (Four R6/AA alkaline batteries or NiCd battery pack)
Charger jack (Barrel connector)
Current drain / power consumption:RX: ? mA
TX: ? mA
Antenna impedance / connector:50 ohm / TNC
Dimensions (W*H*D):70*170*40 mm (2.76*6.69*1.58")
Weight:270 g (9.52 oz), without batteries
Other features:VOX option.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: Murata 55HT
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:1 W
Modulation system:
Max FM deviation:? KHz
Spurious emissions:Less than -? dB
Microphone impedance / connector:? ohm / 3.5 mm
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 198x-199x (Discontinued)
Main PCB:GE-90C-8471 by GRE
Sub PCBs:
Additional info:
Related documents: AF amplifier: LM386
FM-IF: MC3371
RF final: 2SC2314
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
? Internal VOX board





An inside picture of Handic Micman X
