| GENERAL |

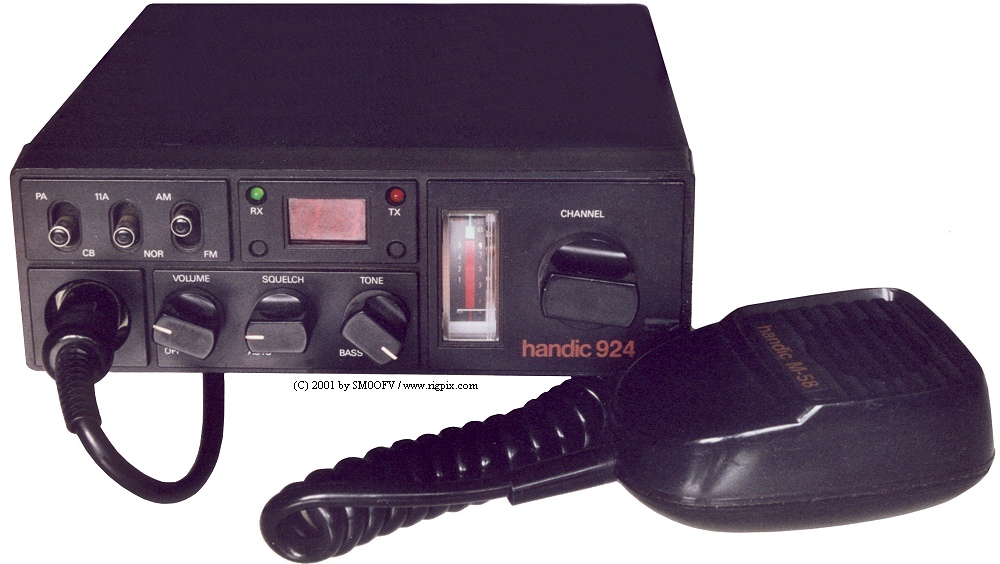

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 24 (1-23 + 11A) |
| Mode: | AM / FM |
| Frequency control: | PLL (LC7131) |
| Frequency stability: | ? ppm |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (2-pin connector) |
| Current drain / power consumption: | RX: 160-900 mA
TX: Max 1.1 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 168*53*199 mm (6.61*2.09*7.84") |
| Weight: | 1.45 Kg (3.2 lb) |
| Other features: | PA. Tone control. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / 8 ohm |
| External speaker connector: | TS jack (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 3.5 W |
| Modulation system: | |
| FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 6-pin (DIN) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 198x-198x (Discontinued) |
| Main PCB: |
P-110030 by ?
Single sided. Through-hole components.
|
| Sub PCBs: |
P-110031 - Channel selector board
P-? - LED channel display board
|
| Additional info: | |
| Related documents: |
Schematic diagram (1.1 MB)
PLL: LC7131
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
