| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: |
Sweden
26.965-27.255 MHz
USA
26.965-27.405 MHz
|
| Channels / tuning steps: |
Sweden: 23 (1-22 + 11A)
USA: 40
|
| Mode: | AM |
| Frequency control: | PLL |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | Mains or 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | PA. SWR meter. Noise eliminator. Selcall jack. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Sweden: ~3.5 W (5 W input)
USA: 4 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance/connector: | ? ohm / ?-pin |
| Microphone input sensitivity: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Designed in Sweden, 1976-198x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 1976 in Sweden: SEK 1595:-
New price 1978 in Sweden: SEK 1499:-
|
| Related documents: | |
| Market(s) / Approval(s): |
Sweden
Televerket Radio
USA
FCC ID: ?
|
| Sams Photofact #: | CB-249 (February 1979) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|

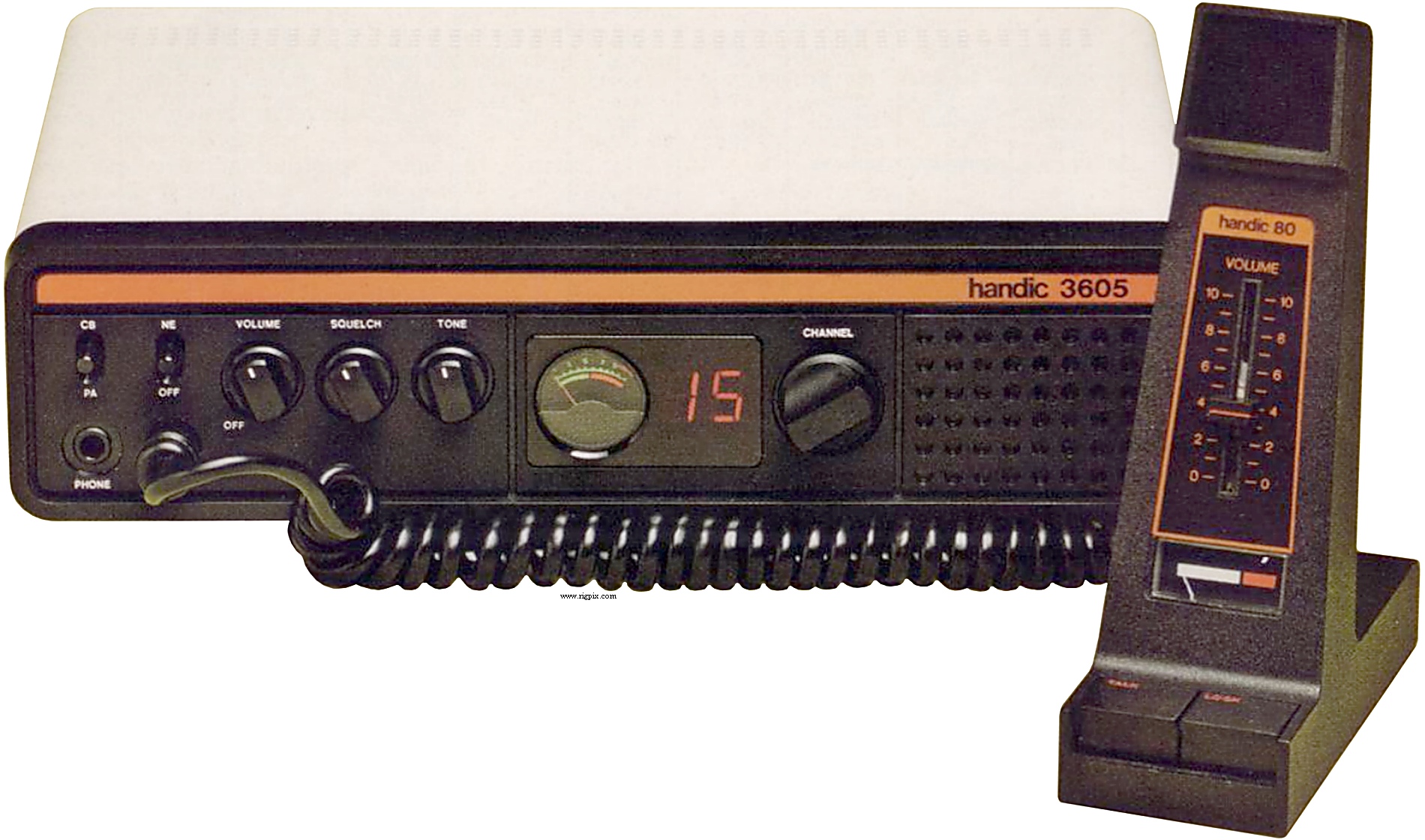

80
|
Amplified desk microphone
|
|
