Ham International Concorde

A picture of Ham International Concorde

SPECIFICATIONS

GENERAL
Type:Citizen band / "Freeband" / Export transceiver
Frequency range: 26.965-28.305 MHz in three bands:
Low: 26.965-27.405 MHz
Mid: 27.415-27.855 MHz
High: 27.865-28.305 MHz
Channels / tuning steps:120
Mode:AM / FM / SSB / CW
Frequency control:PLL (PLL02A)
Frequency stability:Max ? ppm
Clarifier or Delta tune:±? Hz
Power supply:13.8 VDC (2-pin connector)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):195*65*275 mm (7.68*2.56*10.83")
Weight:3.15 Kg (6.94 lb)
Other features: PA. ANL/NB. SWR-meter. Tape recorder jack. Frequency counter jack.
External selcall jack.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (SSB)
IF: 10.695 MHz
Double conversion superheterodyne (AM/FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power: AM: 5 W
FM: 6 W
SSB: 12 W (PEP)
CW: 5 W
Modulation system:
Max FM deviation:±1.5 KHz
Spurious emissions:Less than -? dB
Microphone impedance / connector:? ohm / ?-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 197x-197x (Discontinued)
Main PCB:PTBM059COX by Cybernet Electronics Corporation
Sub PCBs:
Additional info:
Related documents:PLL: PLL02A
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -

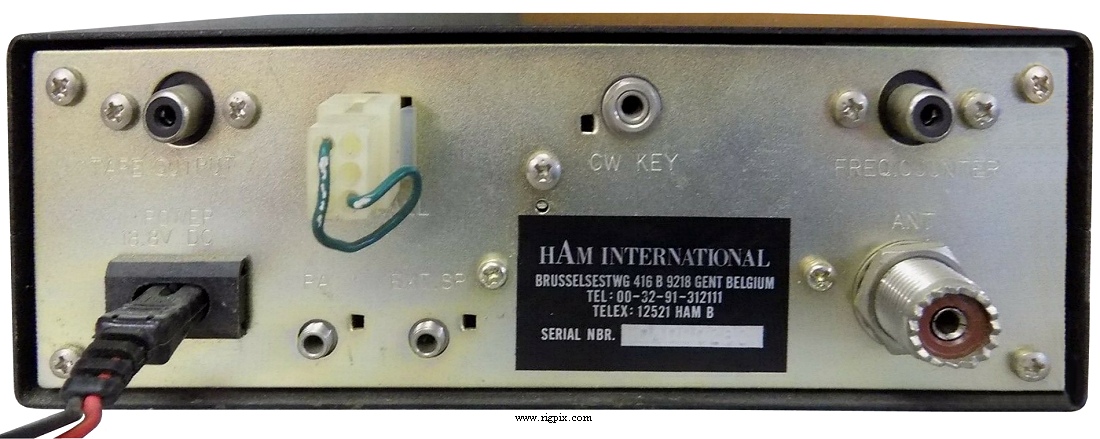

A rear picture of Ham International Concorde
