| GENERAL |

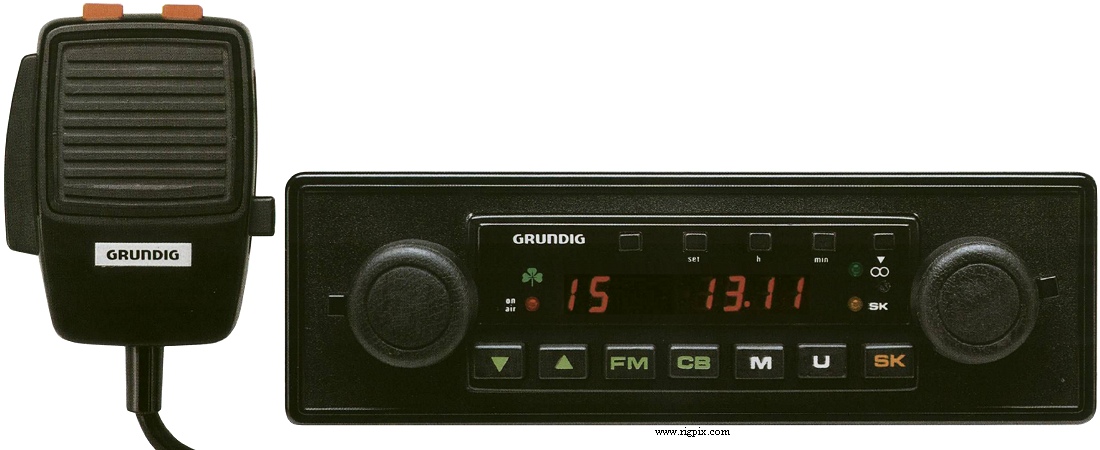

| Type: | Citizen band transceiver and car stereo combo |
| Frequency range: |
CB
27.005-27.135 MHz
Receiver
0.52-1605 / 88-108 MHz
|
| Channels / tuning steps: | CB: 12 (Channel 4 to 15) |
| Mode: | CB: AM / FM
Receiver: AM / WFM (Stereo) |
| Frequency control: | PLL |
| Frequency stability: | ±0.002% @ -10 to +55°C (14 to 131°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? A
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 175*44*150 mm (6.89*1.73*5.9") |
| Weight: | ? Kg (? lb) |
| Other features: | PA. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (CB)
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | CB: 0.4 uV (10 dB S/N) |
| Squelch sensitivity: | 0.1 uV (Threshold)
100 uV (Tight) |
| Selectivity: | 75 dB (Adjacent channel) |
| Image rejection: | 80 dB |
| AF output power / speaker: | 2*7 W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 500 mW |
| Modulation system: | |
| Max AM modulation (Factory set): | 98% |
| Max FM deviation (Factory set): | ±2.2 KHz |
| Spurious emissions: | Better than -82 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1978-1979 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: | |
| Known markets and approvals: |
West Germany
FTZ Nr. PR 27-???
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
