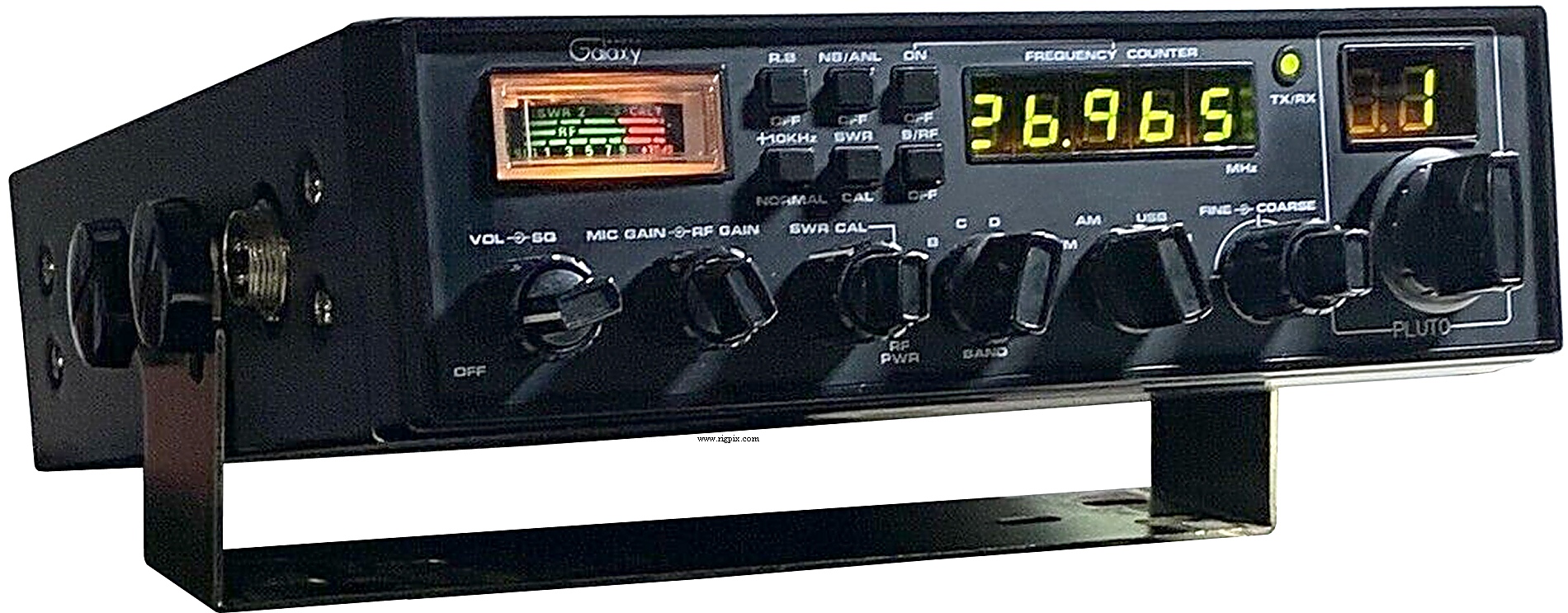

| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
Frequency range
depending on version: |
Lo band version: 25.615-28.315 MHz in six bands
| A: | 25.615-26.055 MHz |
| B: | 26.065-26.505 MHz |
| C: | 26.515-26.955 MHz |
| D: | 26.965-27.405 MHz |
| E: | 27.415-27.855 MHz |
| F: | 27.865-28.315 MHz |
Hi band version: 26.065-28.765 MHz in six bands
| A: | 26.065-26.505 MHz |
| B: | 26.515-26.955 MHz |
| C: | 26.965-27.405 MHz |
| D: | 27.415-27.855 MHz |
| E: | 27.865-28.305 MHz |
| F: | 28.315-28.765 MHz |
|
| Channels / tuning steps: | 271 (6*40 + alpha channels) |
| Mode: | AM / FM / SSB |
| Frequency control: | PLL (MC145106) |
| Frequency stability: | 0.001% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | Coarse: ±5 KHz
Fine: ±1 KHz |
| Power supply: | 11.7-15.9 VDC (3-pin connector) |
| Current drain / power consumption: | RX: 0.6 to 1.2 A
TX: 4 to 6 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 200*60*235 mm (7.88*2.38*9.25") |
| Weight: | 2.27 Kg (5 lb) |
| Other features: |
Roger beep. NB/ANL. SWR-meter. +10 KHz switch.
±5 KHz RX/TX coarse clarifier. ±1 KHz RX fine clarifier
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB)
IF: 10.695 MHz
Double conversion superheterodyne (AM/FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 1 uV (10 dB (S+N)/N)
FM: 1 uV (20 dB (S+N)/N)
SSB: 0.25 uV (10 dB (S+N)/N)
|
| Selectivity: |
AM/FM: 3 KHz (-6 dB), 9 KHz (-50 dB)
SSB: 2.1 KHz (-6 dB), 3.3 KHz (-60 dB)
|
| Image rejection: | 65 dB |
| AF output power / speaker: | 4 W at ?% distortion / 8 ohm |
| External speaker connector: | TS jack (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM/FM: 10 W
SSB: 21 W (PEP)
|
| Modulation system: |
AM: High- and low level class B
FM: Variable capacitance (?)
SSB: Balanced
|
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 198x-198x (Discontinued) |
| Main PCB: | EPT360014B by Ranger |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (1.4 MB)
PLL: MC145106
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
